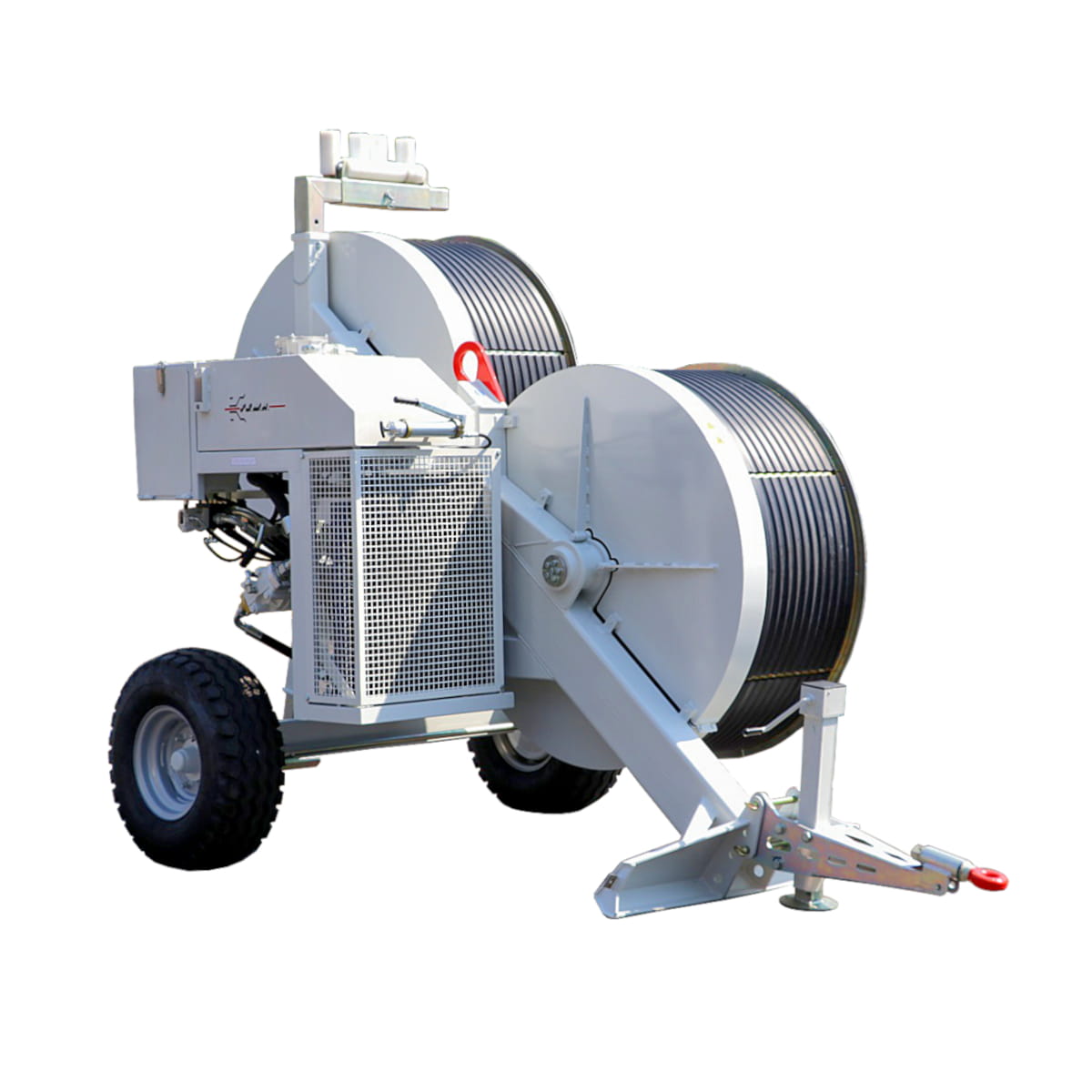

Inactive hydraulic tensioner 100 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of tensioning force
• 1 counter-meter device
• Adherence wheels with interchangeable nylon liners
• Gear box (2 speed)
• Independent mechanical stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
14-PT Thermally treated steel adherence wheels
Performance
Max tension 100 kN
Max speed 5 km/h

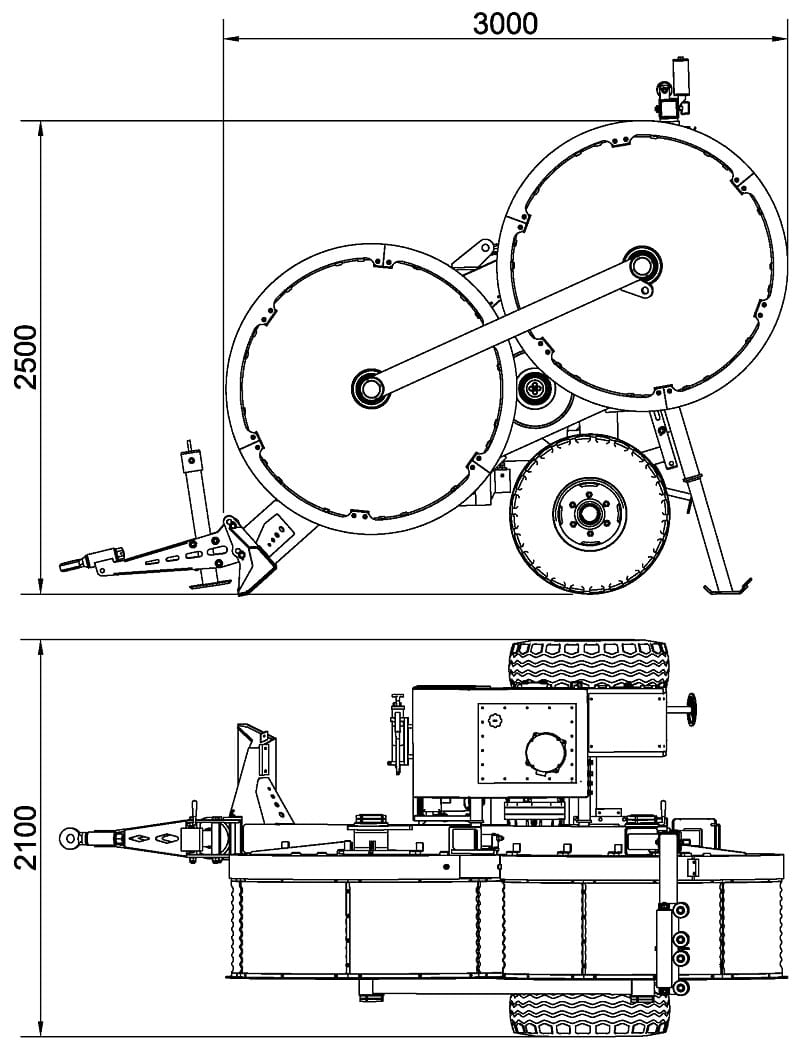

Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1200 mm
Max conductor diameter 40 mm
Weight 3500 kg
