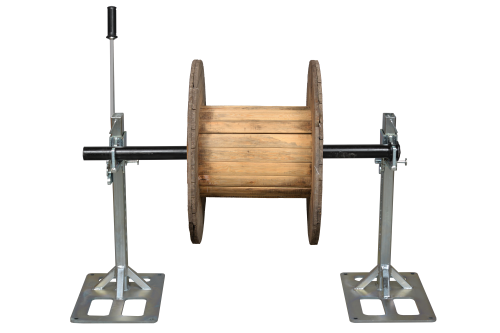

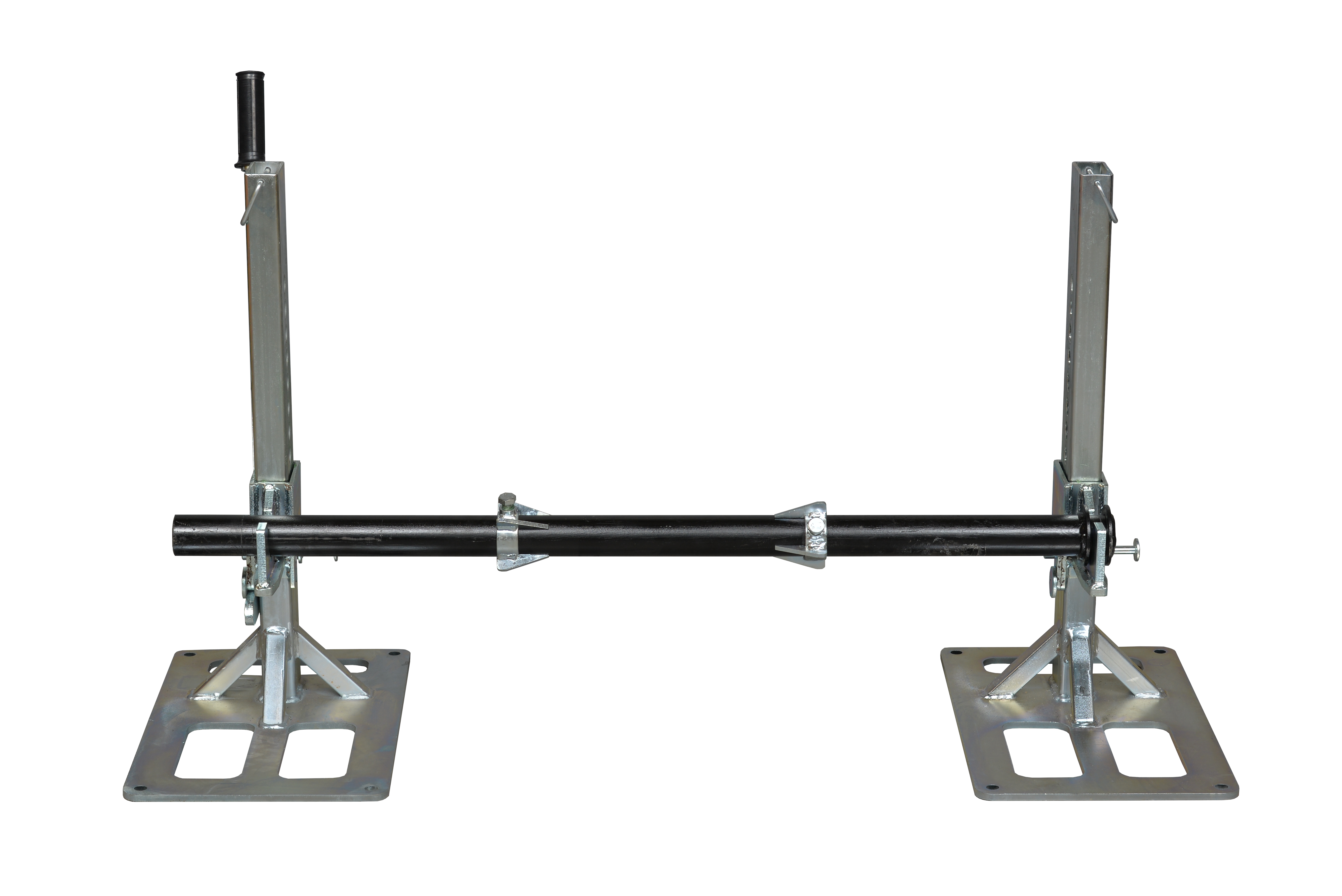

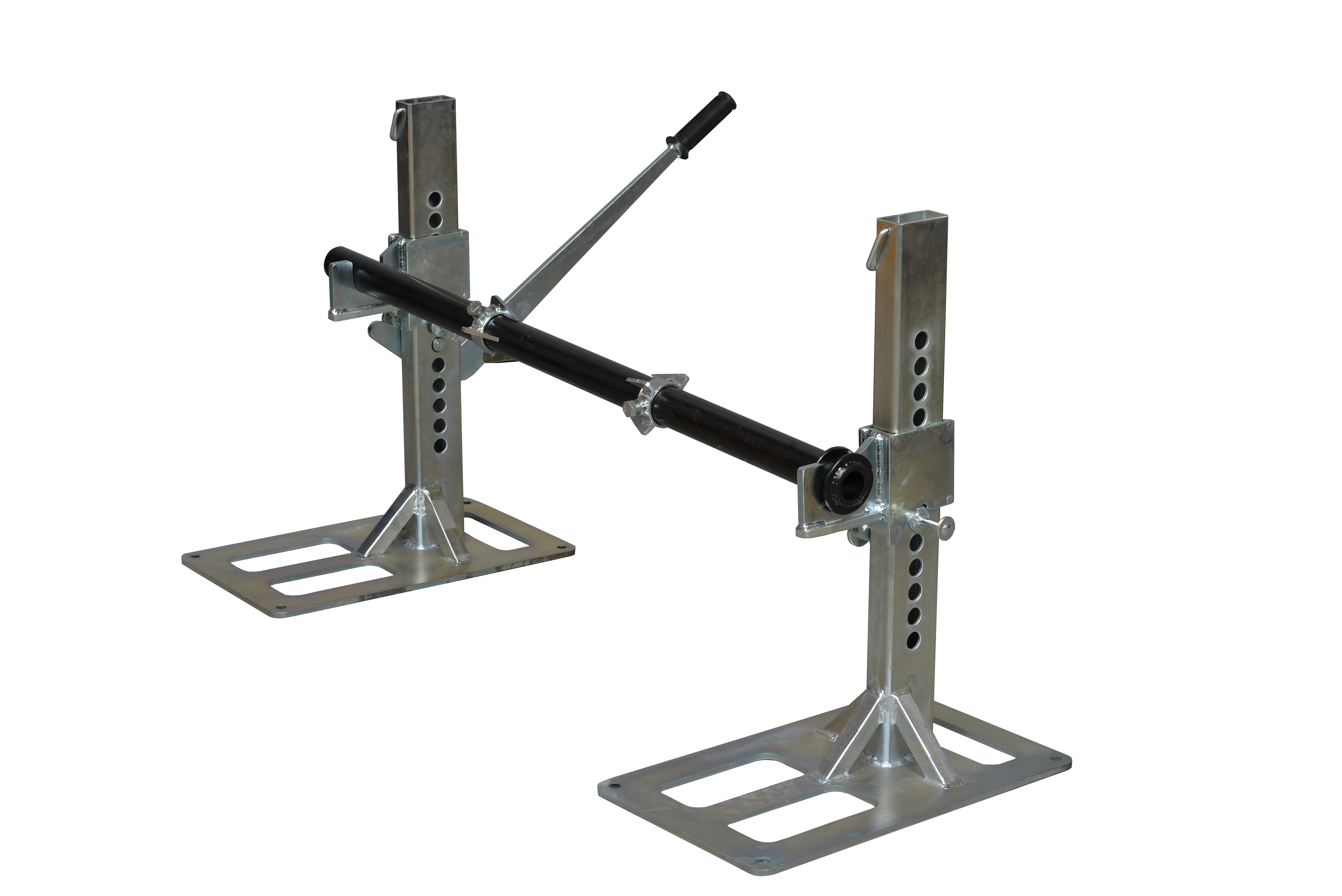

Mechanic Drum Jack 500 kg
Description
Cable drum jack
Dimensions of a single stand:
base 300 x 500 mm
height 658 mm
Supporting tube Ø 48 mm with a length of 1100 mm with retaining discs (welded).
Load capacity of the set - 500 kg.
Minimum diameter of the drum - 500 mm.
Maximum diameter of the drum - 1000 mm.
The support tube rests on the supports.
The weight of the stand - 14 kg.
Dimensions of the slider including the support:
width - 62 mm,
height - 145 mm,
length - 215 mm.
