Petrol winch 1150 kg lifting 450 kg speed 20 m/min
Description
Technical data
| Motor | Honda GX160 (160 cm³) |
|---|---|
| Maximum pulling force | 1150 kg (direct), 2300 kg with a pulley block |
| Maximum lifting force | 450 kg |
| Drum speed 108 mm | 20 m/min |
| Rope length | unlimited |
| Dimensions (LxWxH) | 48.3 x 37.1 x 36.1 cm |
| The package includes | polyester strap PCA-1260 (60 mm x 2 m) |
| Weight | 34.5 kg |
Product description

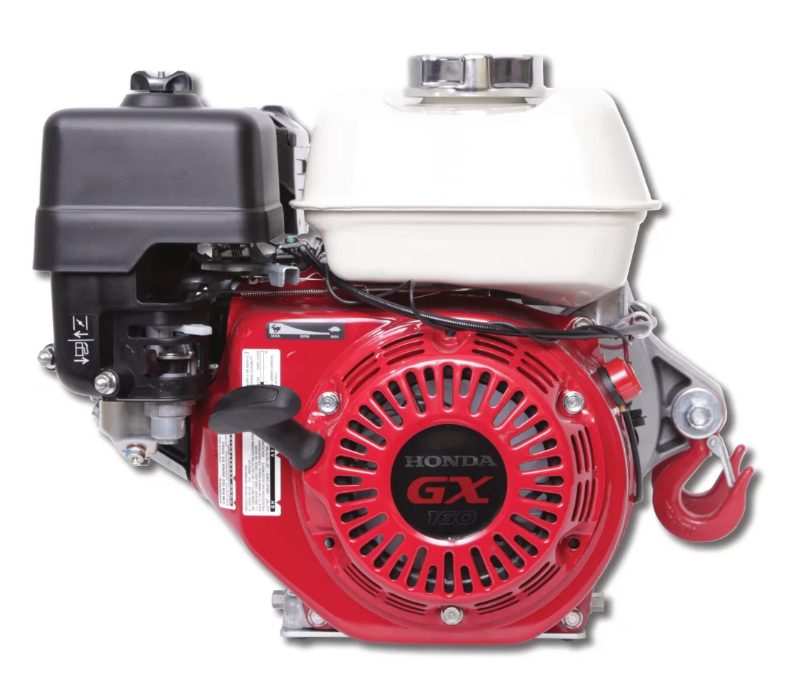

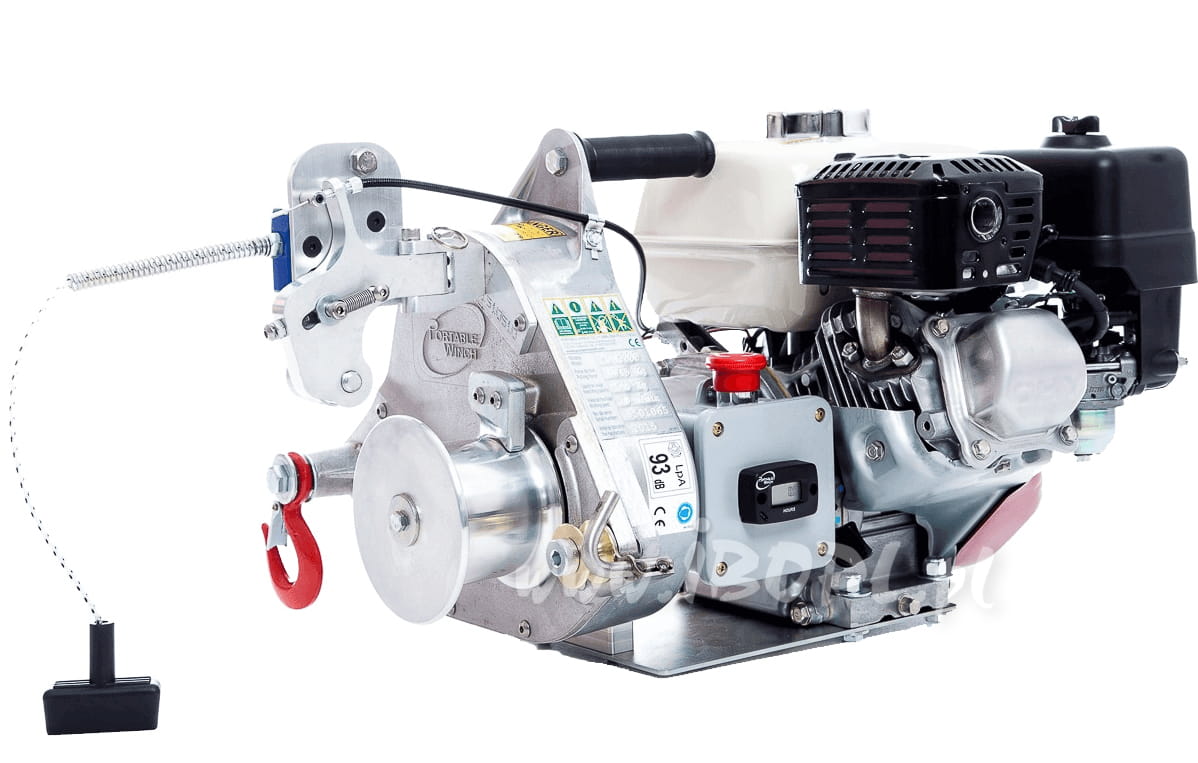

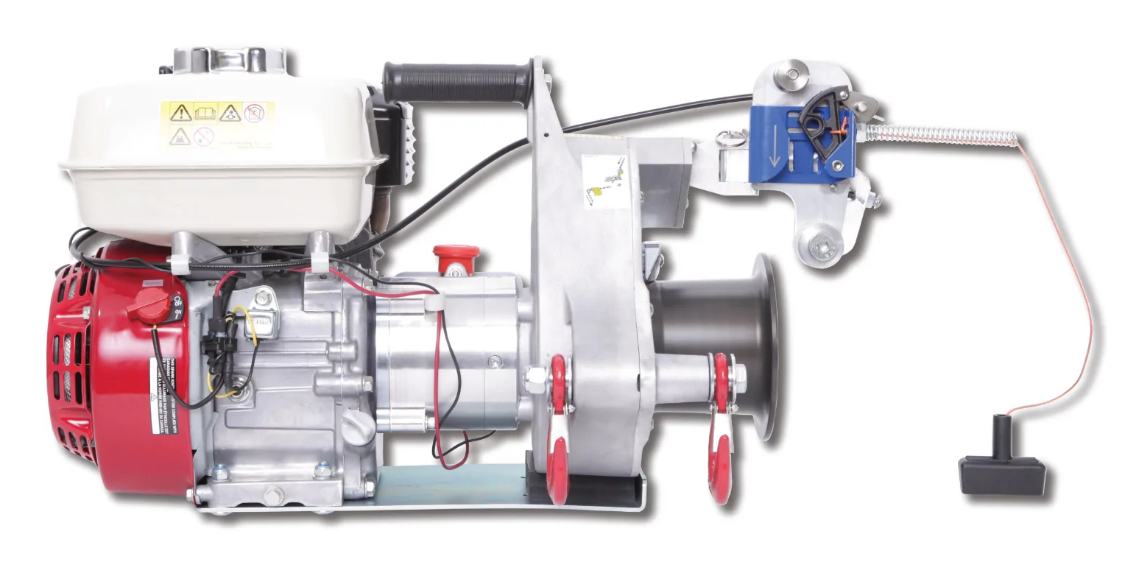

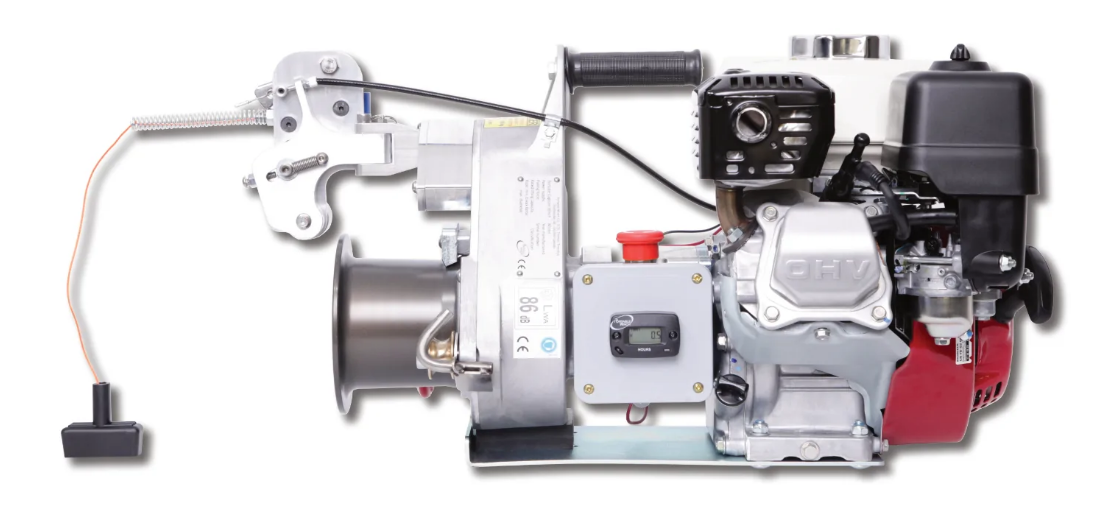

The PCH2000 petrol winch is powered by a Honda GX engine with a displacement of 160 cm3 and features an unrivalled pulling force of 1150 kg and a load capacity of 450 kg per line. Pulley blocks can multiply the pulling force. The PCH is the most powerful winch available for the most demanding tasks.
Thanks to the PCH2000 winch drum, the unit maintains a constant force with a rope of unlimited length at a winding speed of 20 metres per minute. It is the first model to offer an anodised drum with a diameter of 108 mm. Due to the larger drum size, the friction surface increases and provides better load control. Thanks to the anodised coating, the PCH2000 offers better wear resistance. These features make it ideal for industrial applications.

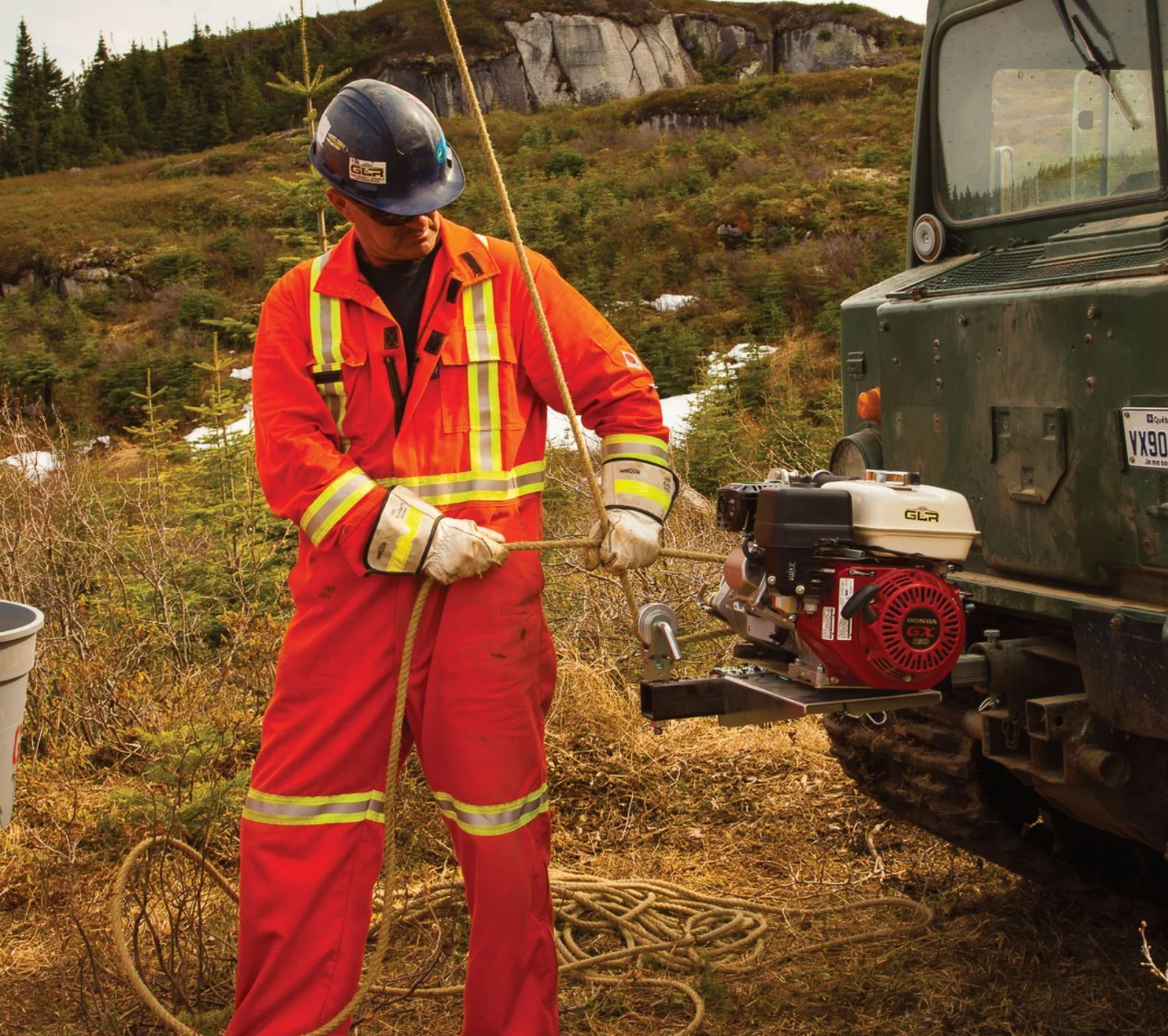

The PCH series is designed for lifting, using a unique clutch and rope attachment system. Once the rope has been inserted into the gripping system, the operator engages the clutch and starts the movement by pulling the rope horizontally. The operator can decide at any moment to stop lifting and hold the load in the air.
Key features
- Portable
- Unlimited rope length
- Efficient
- Quick connection
- Easy to use
- High level of work safety
- Maintenance-free rewinding element section
