Petrol winch 350 kg speed 36 m/min

Technical data

Product description

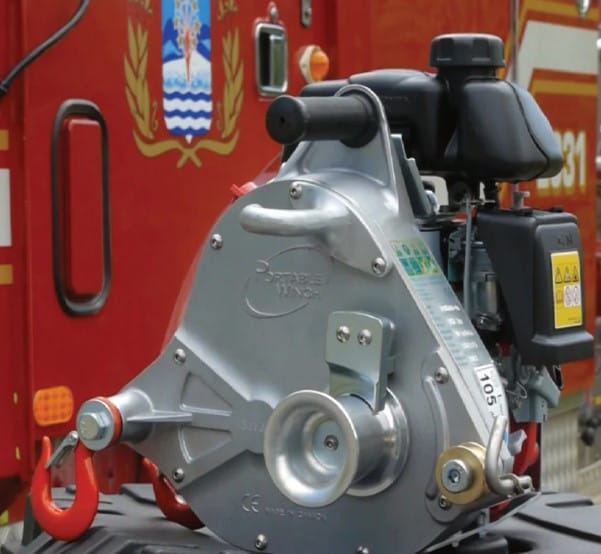

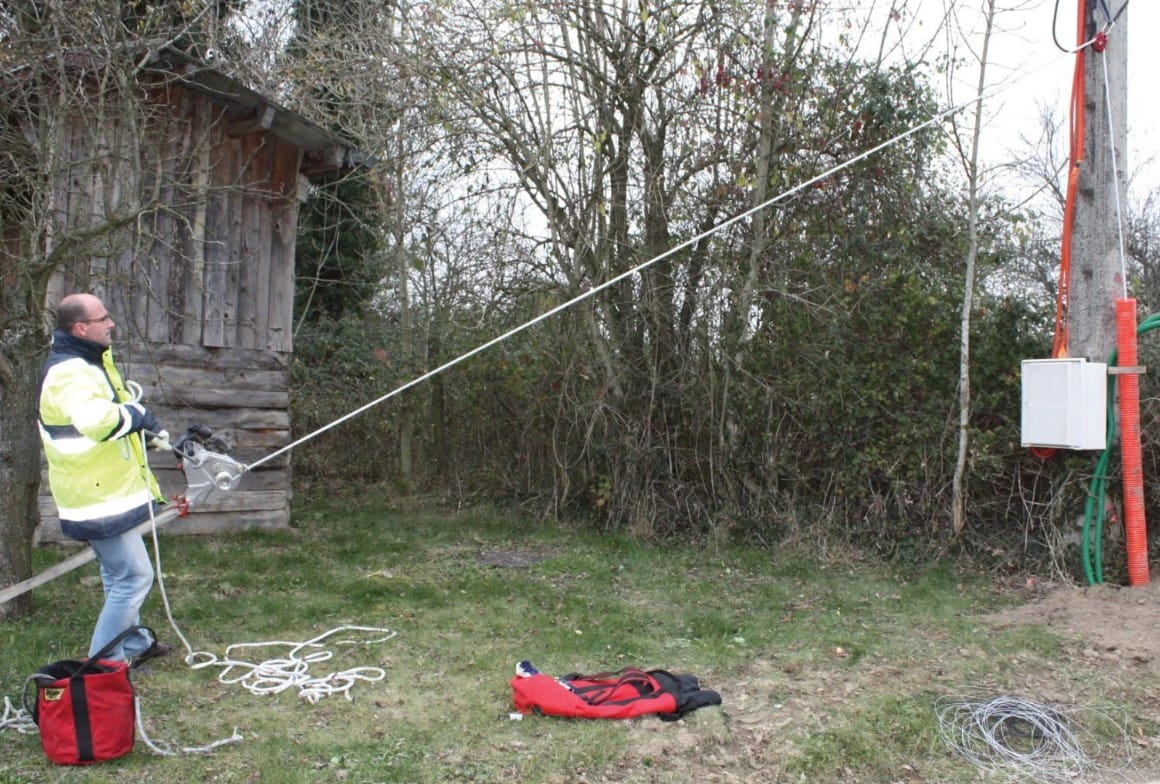

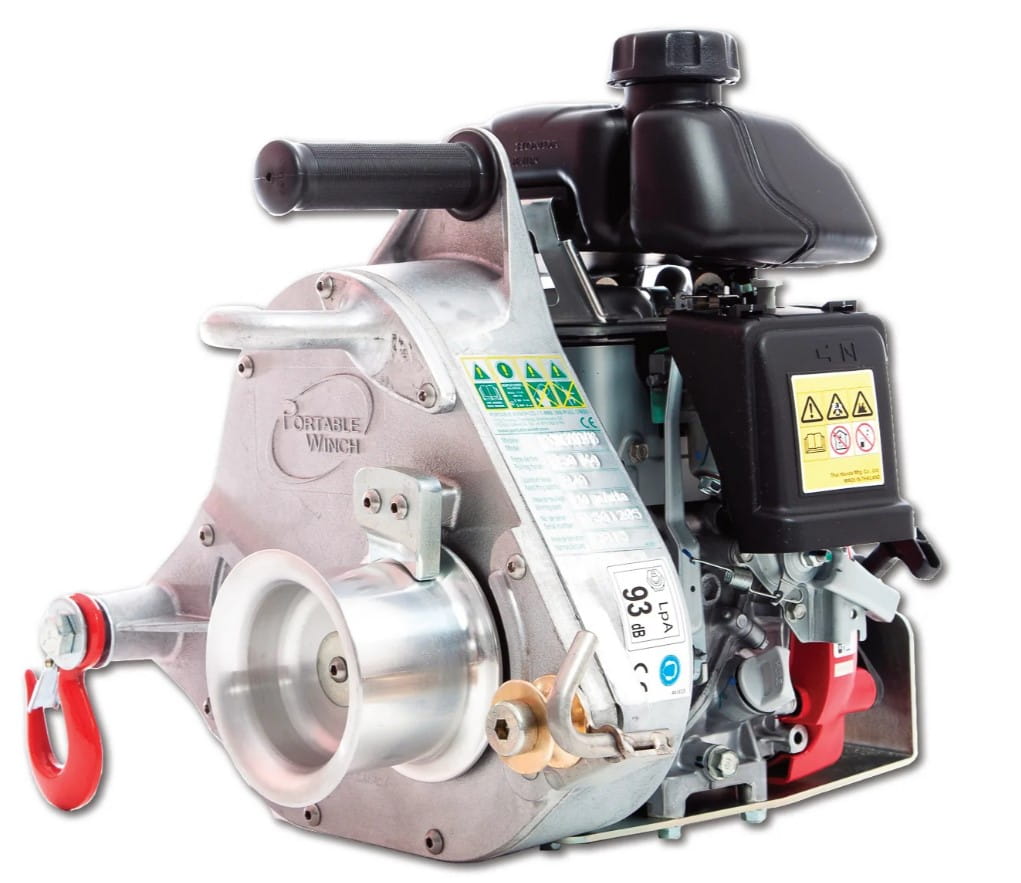

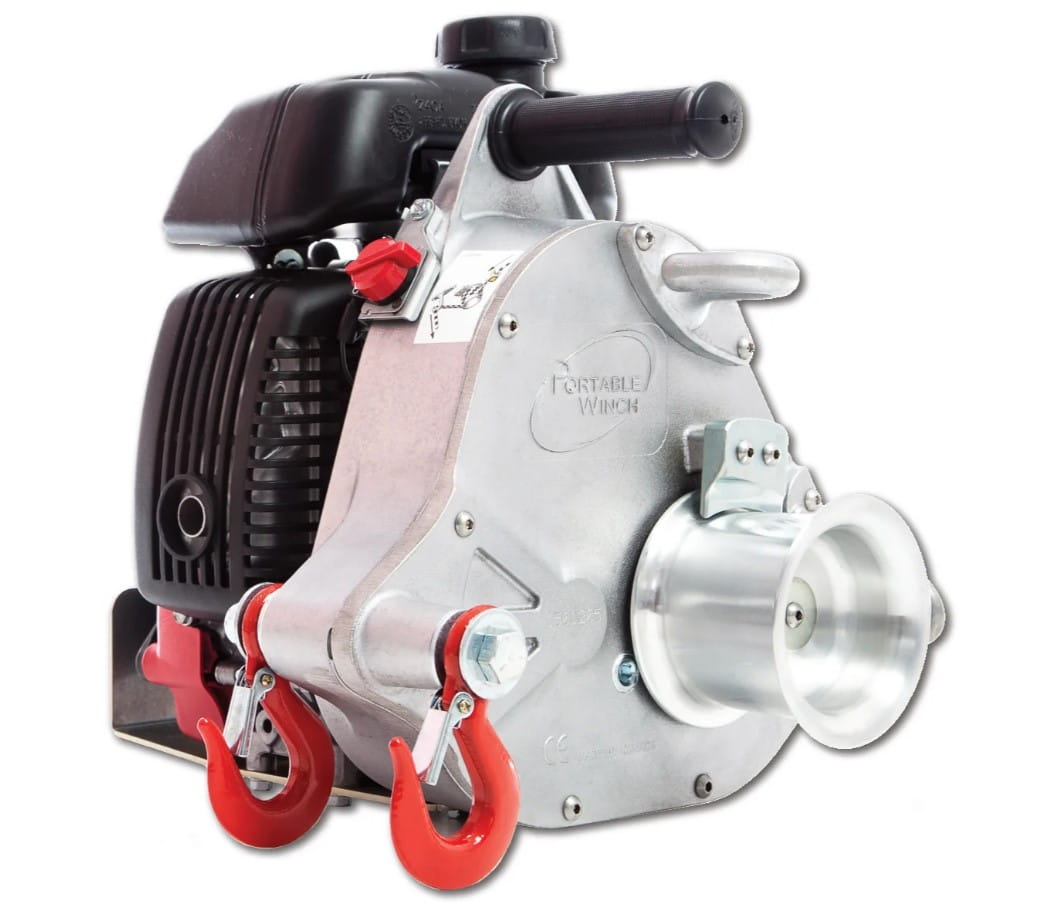

The PCW 5000-HS is the winch with the highest pulling speed. The ideal winch for work requiring higher speed and efficiency, such as pulling cables or fibre optics. This model is powered by a reliable four-stroke Honda GXH50 engine (50 cm³). The maximum pulling force of this model is 350 kg directly. By adding a pulley block system, you can achieve up to five times the pulling force. This means that with two double pulley blocks you can pull up to 1750 kg!

The PCW 5000-HS has great power and two speeds thanks to interchangeable capstan drums. If you need full power, we recommend the standard 57 mm drum, which pulls 24 metres of rope per minute. If you need more speed, use the optional 85 mm drum, which pulls the rope at up to 36 metres per minute. The rope length is unlimited, depending on your needs.

Based on the same successful design as the PCW 5000, the PCW 5000-HS is fitted with a gearbox optimised for speed. At 36 metres per minute it can pull loads up to 3 times faster than its predecessor, which makes it ideal for smaller loads over longer distances. In addition, the winch's capstan drum concept lets users pull loads over an unlimited rope length in a simple, efficient and safe way without loss of energy.

The PCW 5000-HS Portable Winch provides long-lasting, intensive service to every owner of this great machine.

Key features

• Portable
• Unlimited rope length
• efficient
• Low weight
• Quick connection
• Easy to use
• High level of safety
• Maintenance-free rope-handling section
• Not intended for lifting
