Petrol winch 700 kg speed 10 m/min

Petrol winch

A winch designed to be lightweight, efficient and reliable. A portable winch that helps perform labor-intensive tasks in all terrain conditions, regardless of the length of the rope.

Powered by a Honda GX-35^cm3 four-stroke engine. Extremely popular among hunters looking for a lightweight, compact tool. Appreciated by occasional users who need a powerful winch for a variety of outdoor tasks.

Weighs only 9.5 kg. Capacity of 700 kg of pulling power directly on a single rope or 1000 kg through a pulley. EFFICIENT and very easy to transport.

The PCW3000 allows use with any length of rope. The ideal rope for this model is a double braided polyester rope with a diameter of 10 mm!

Very easy to use! The rope is attached to the object to be moved, and the opposite end is wrapped three (or four) times around the winch drum. When the motor is running, the winch drum rotates continuously, and the friction created by pulling/tensioning on the free end of the rope moves the rope and pulls the object.

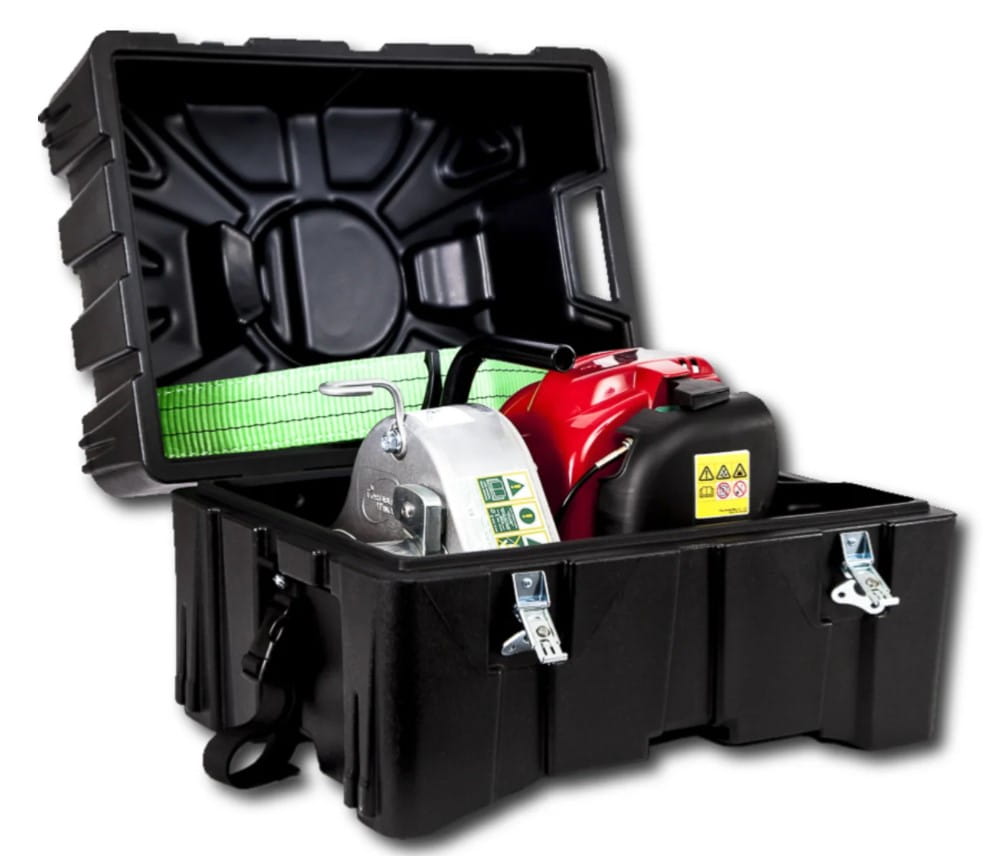

The Portable Winch also offers a range of transport accessories to make working in the field easier, even over long distances! Whether you use the molded transport box (PCA-0102) attached to a backpack rack (PCA-0104), or the tow hook mount for an off-road vehicle,

Included is a multi-purpose polyester strap (60 mm x 2 m) that can be used for many winch mounting and anchoring applications.

• Portable
• Unlimited rope length
• Efficient
• Lightweight
• Quick installation
• Easy to use
• High safety and convenient operation
• Maintenance-free (no maintenance or inspection)

Pulling force

Maximum pulling force with pre-installed drum: 700 kg directly or 1000 kg with pulley

Winch drums

Factory-installed: 76 mm

Speed

76 mm drum: 10 m/min

Recommended Rope

Double braided polyester rope with low stretch - unlimited length

Minimum rope diameter: 10 mm

Maximum rope diameter: 12 mm

Ideal/recommended rope diameter: 10 mm

Engine and transmission

Engine: Honda 4-stroke GX-35 cm3 - all positions

Transmission and gears: Aluminum alloy housing. Heat-treated 3-stage gearing. Shafts mounted on ball bearings. Oil sump lubrication.

Gear ratio: 200: 1

Brake: anti-reverse needle bearing.

Clutch: not applicable - direct drive

Drum rotates at idle: Yes

Duty cycle: continuous

Weight and dimensions

Weight: 9.5 kg

Length: 28.9 cm

Width: 35 cm

Height: 26.1 cm

-PCW3000 Petrol winch

-PCA1255 SMALL ROPE BAG

-PCA1205M Rope10 mm - 50 m

-PCA1275 SINGLE SWING SIDE PULLEY

-PCA1276 LOCKING CARABINER (X2)

-PCA1281 SAFETY HOOK WITH LATCH

-PCA1260 POLYESTER SLING

-PCA1350 ENDLESS ROUND POLYESTER SLING

FREE TRANSPORT CASE & FREE ROPEWIZER
