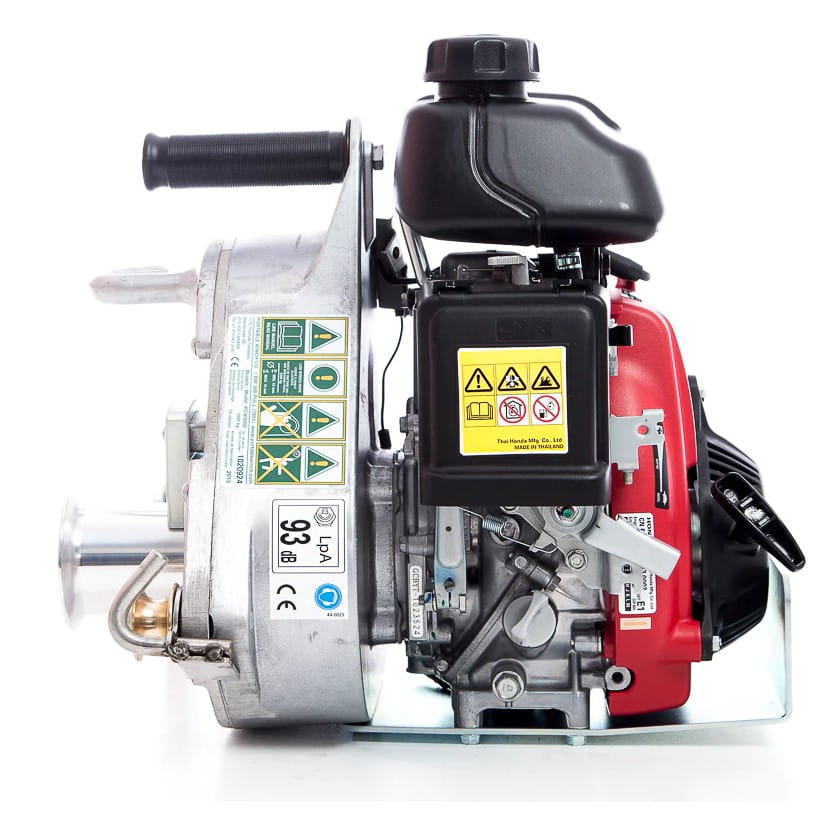

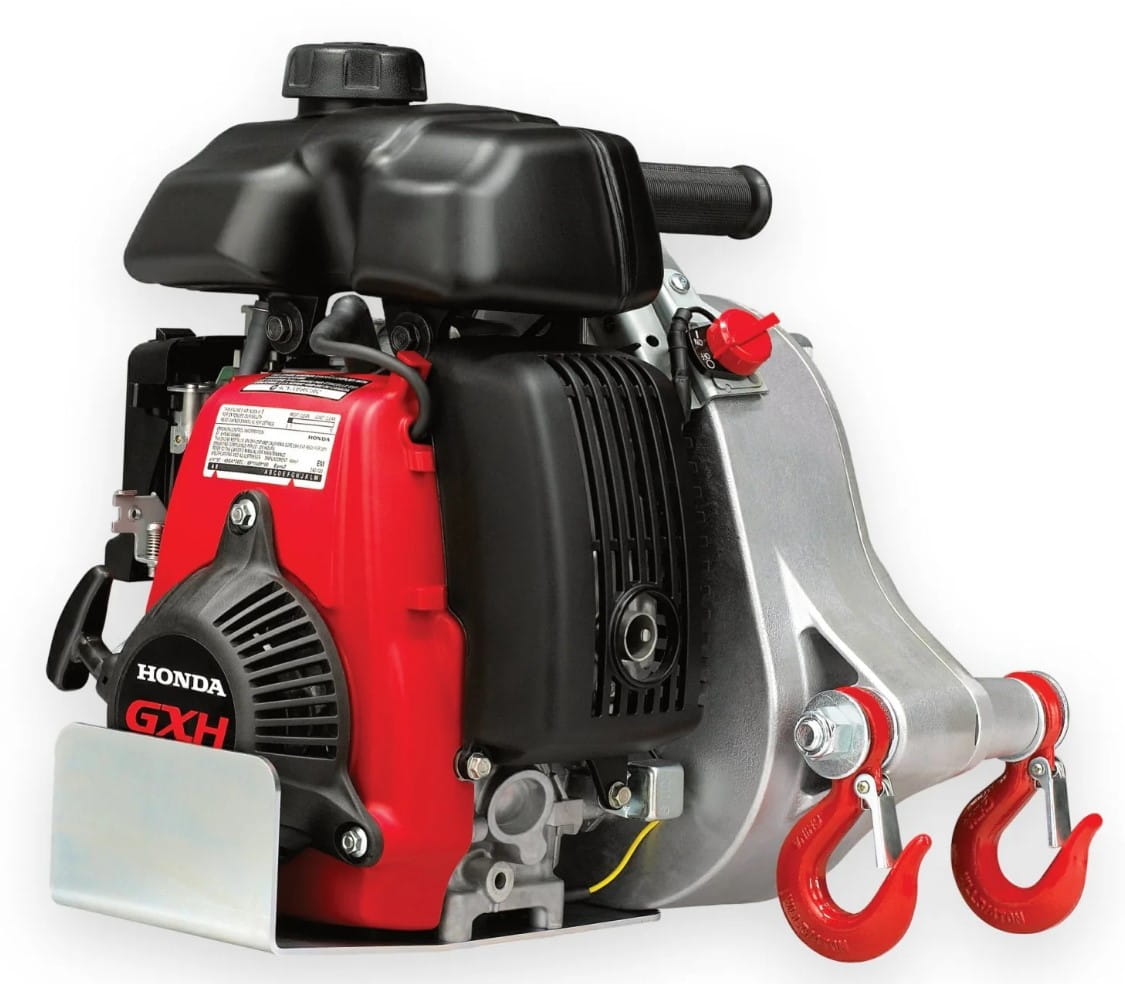

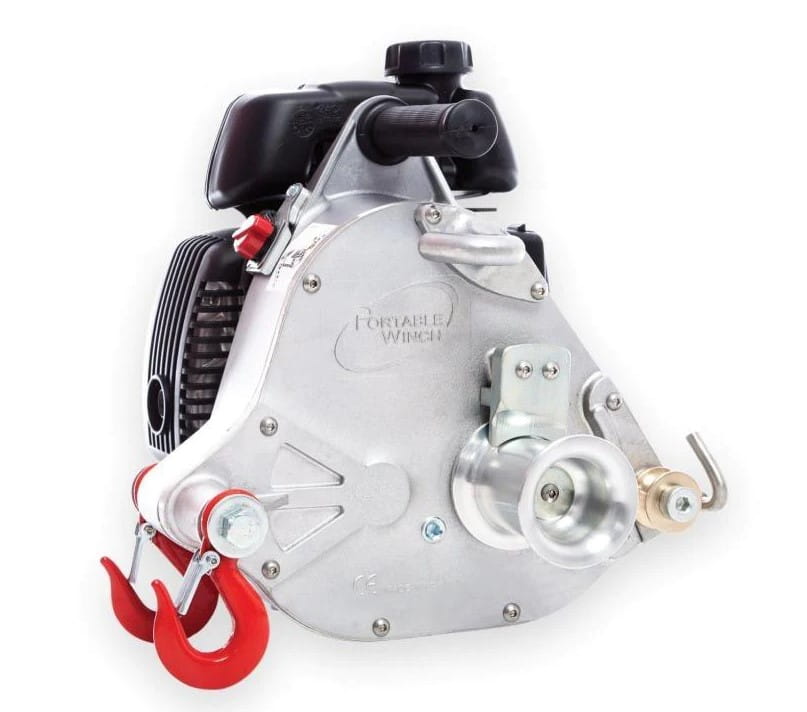

Petrol winch 700 kg speed 18 m/min

A winch designed to be lightweight, efficient and reliable. A portable winch that helps you perform labor-intensive tasks in all terrain conditions, regardless of the length of the rope.

Ideal for hauling heavy loads!

Powered by a HONDA GXH-50^cm3 four-stroke engine, the winch is designed for heavy loads.

Weighing only 16 kg, it offers a pulling force of 1,000 kg directly or 2,000 kg through the pulleys. In addition, there are two speed options thanks to interchangeable winch drums. If you want POWER, choose a 57 mm drum pulling at 12 meters per minute. If your situation requires SPEED, choose an 85 mm drum pulling at 18 meters per minute.

The PCW5000 Portable Winch Winch can be used with any length of braided 12 mm diameter polyester rope, and with all winch-specific equipment and accessories.

A 57 mm drum has been pre-installed in the winch. The 85 mm drum is added additionally in the set

A multi-purpose polyester belt (60 mm x 2 m) is included, which can be used for many applications of mounting and anchoring the winch.

• Portable
• Unlimited rope length
• Efficient
• Lightweight
• Quick installation
• Easy to use
• High safety and convenient operation
• Maintenance-free (no maintenance or inspection)

Pulling force

Maximum pulling force with pre-installed 85 mm drum - 700 kg directly or 1000 kg with pulley

Winch drums

Factory-installed: 57 mm

Additional: 85 mm

Pulling power on 57 mm winch - 1000 kg on 85 mm winch - 700 kg

Pulling power with additional block on 57 mm winch - 2000 kg on 85 mm winch - 1400 kg

Speed

57 mm drum: 12 m/min

85 mm drum: 18 m/min

Recommended Rope

Double braided polyester rope with low stretch - unlimited length

Minimum rope diameter: 10 mm

Maximum rope diameter: 16 mm

Ideal/recommended rope diameter: 12 mm

Engine and transmission

Engine: Honda 4-stroke GXH-50 ^cm3

Gearbox and gears: Aluminum alloy housing. Heat-treated 3-stage gearbox. Shafts mounted on ball bearings. Oil sump lubrication.

Gear ratio: 110: 1

Brake: anti-reverse needle bearing.

Clutch: not applicable - direct drive

Drum rotates at idle: Yes

Duty cycle: continuous

Weight and dimensions

Weight: 16 kg

Length: 36.2 cm

Width: 37.1 cm

Height: 36.1 cm

Mounting

Comes with a 60mm x 2m polyester belt (PCA-1260)

• Certification: CE
