Pneumatic mole- 130 mm SET

Application

Carrying out jacking with a diameter of 130 mm,

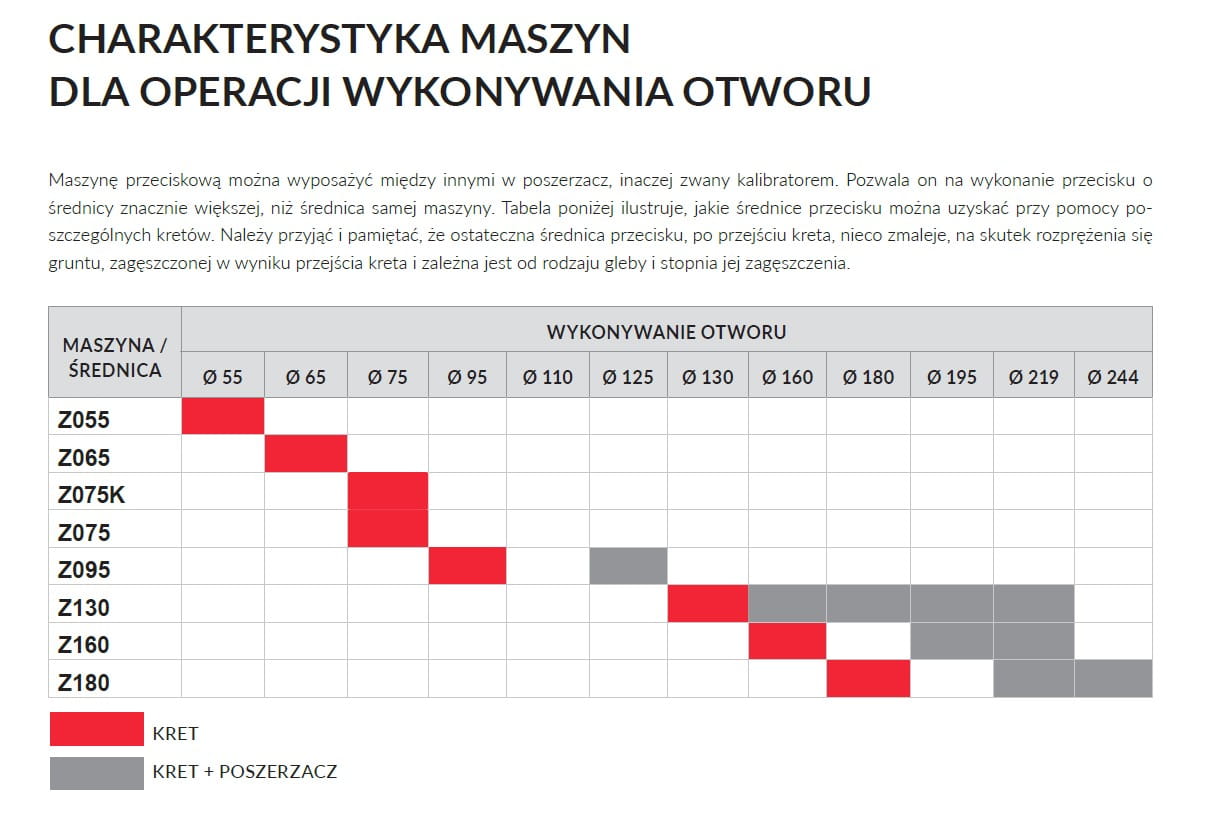

Carrying out jacking with diameters of 160 mm, 180 mm, 195 mm, 219 mm using the extensions

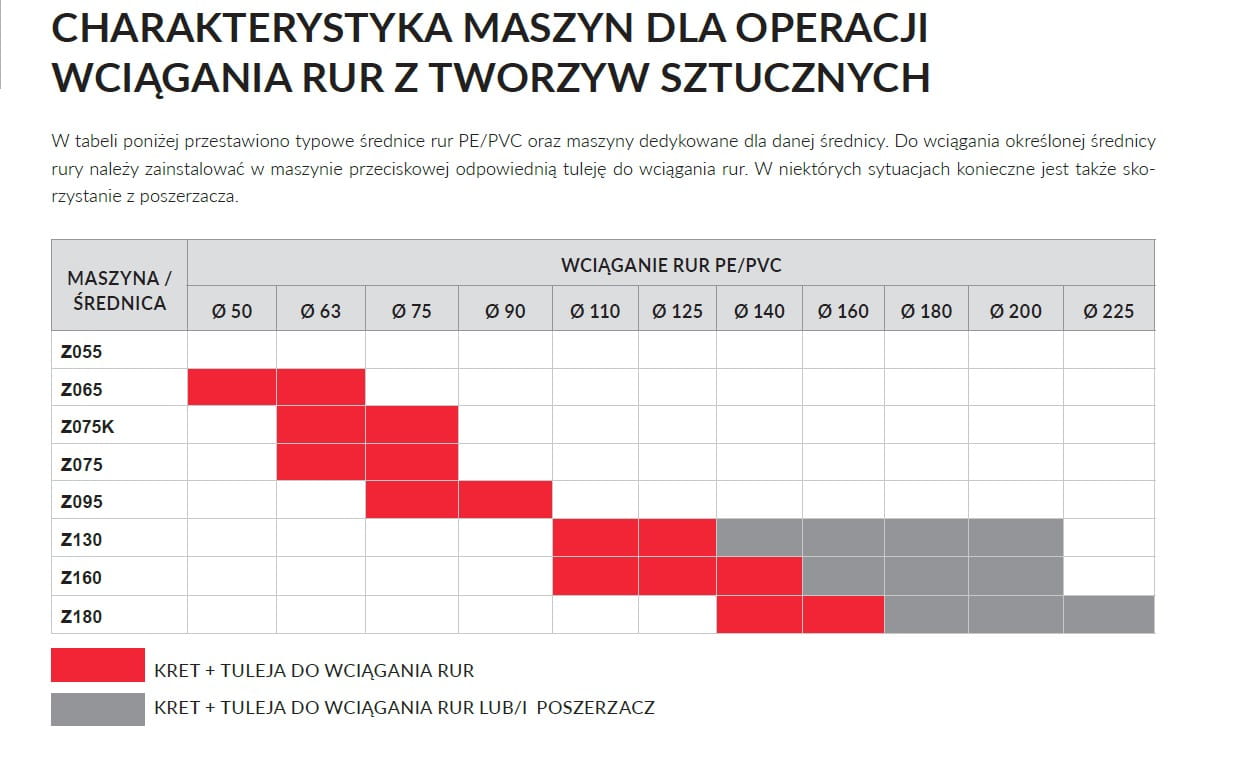

Pulling in PE,PVC pipes directly behind the machine with a diameter of 90 mm - 125 mm,
Pulling in PE,PVC pipes using additional accessories, pipe diameters: 140 mm, 160 mm, 180 mm, 200 mm
Pulling in steel pipes using cones: up to a diameter of 323 mm.

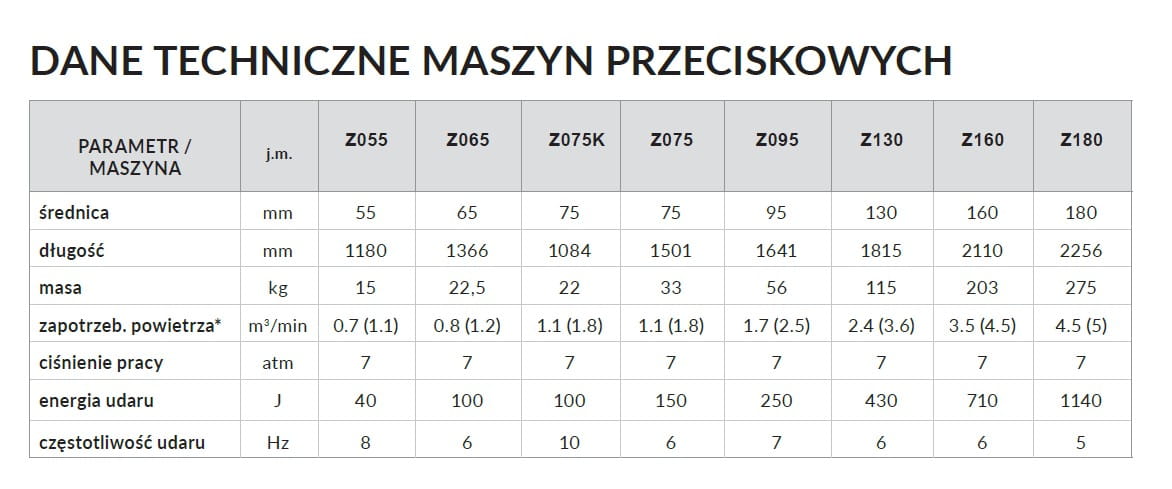

Technical data:

Diameter: 130 mm
Length: 1815 mm
Weight: 115 kg
Air demand: from 2.4 m3/min (3.6 m3/min compressor recommended)
Working pressure: 7 atm
Impact energy: 430 J
Impact frequency: 6 Hz

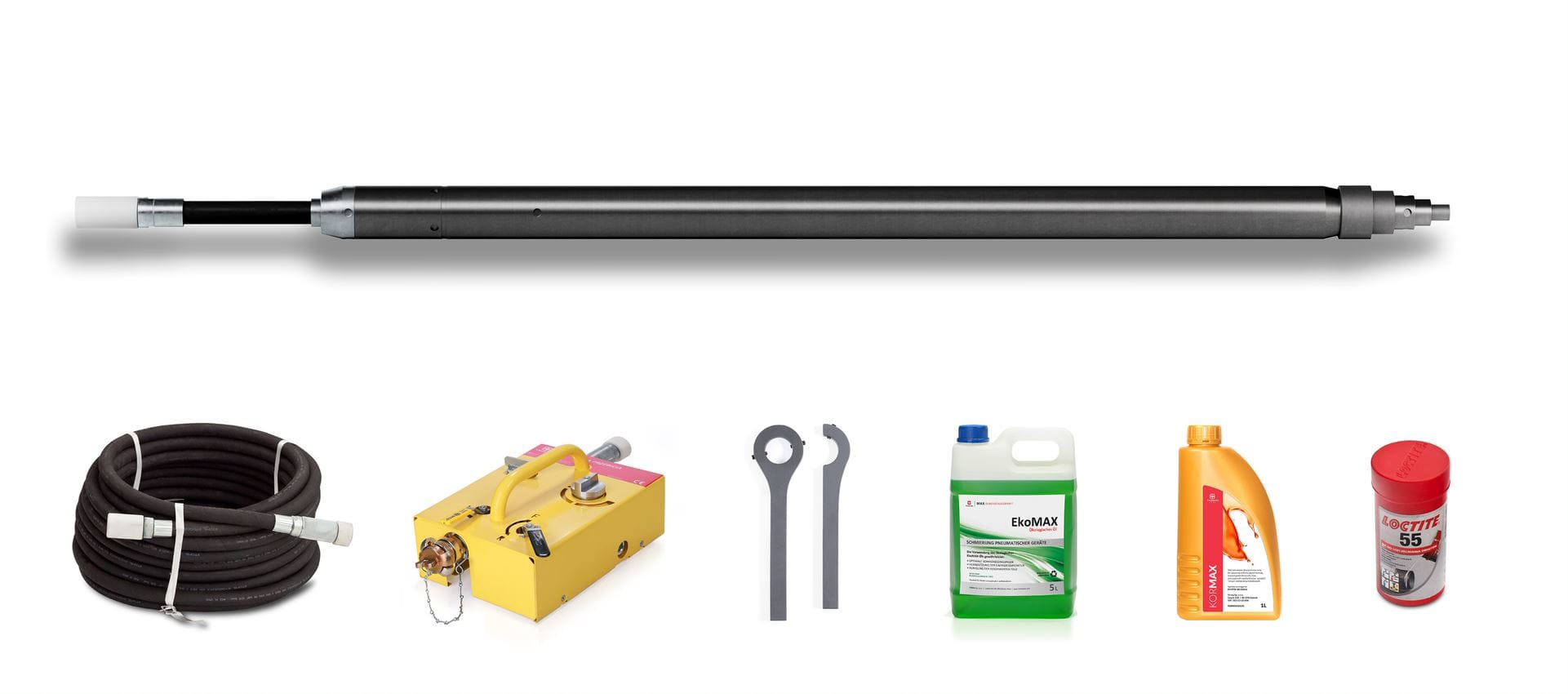

The set comprises:

130 mm diameter mole-type jacking device,
supply and control hose, length 20 mb,
oiler with control valves,
set of spanners for changing the equipment,
EkoMAX 5L oil,
KorMAX 1L oil,
LOCTITE 55 sealing thread.

The Z130 is the longest produced machine, it's where it all started. In the beginning it was the Z130, which was improved and refined over the years of production until the current Z130 model was produced. This latest upgrade, which has been in production since 2004, has retained all the advantages of its predecessor, such as very good accuracy and low operating costs, while gaining higher energy and very high durability, thanks to a completely new head-cylinder connection and a new ram. The Z130 is the most frequently purchased machine in Poland because of its versatility. Mainly due to the very wide range of works for which it is designed, it enables both stand-alone jacking and jacking with simultaneous insertion of plastic pipes (PE, PVC). In addition, with the use of additional accessories, it is possible to widen the completed holes up to a diameter of 219 mm and to pull in pipes with diameters of 160 mm-200 mm. The use of wideners is justified if the ‘mole’ is to be used mainly for installing pipes with diameters up to 130 mm, while diameters of 160 mm, 180 mm, 200 mm will occur occasionally.

Possible options
Sleeve Ø 90-110 mm with fittings for inserting PE/PVC pipes
Sleeve Ø 125 mm with fittings for inserting PE/PVC pipes
Hole widening kit with widener Ø160mm, Ø180mm, Ø195mm,
Ø219mm and for pulling in PE/PVC pipes up to Ø200mm
Steel pipe insertion set
Ø133mm, Ø159mm, Ø219mm, Ø273mm, Ø323mm
Extraction plate Ø133mm, Ø159mm, Ø219mm, Ø273mm, Ø323mm
Optical set (telescope + pole) 3 m
Optical set (telescope + pole) 2 m

EkoMax oil 5 litres

EkoMax oil 20 litres

Compressor-oil hose light 10 mb

Hose compressor - light oiler 20 mb

Hand cutting bit for pulling in pipes from Ø 25 mm to Ø 55 mm
Cutting tip for manual pulling in of pipes from Ø 25 mm to Ø 55 mm without
without power and control hose
