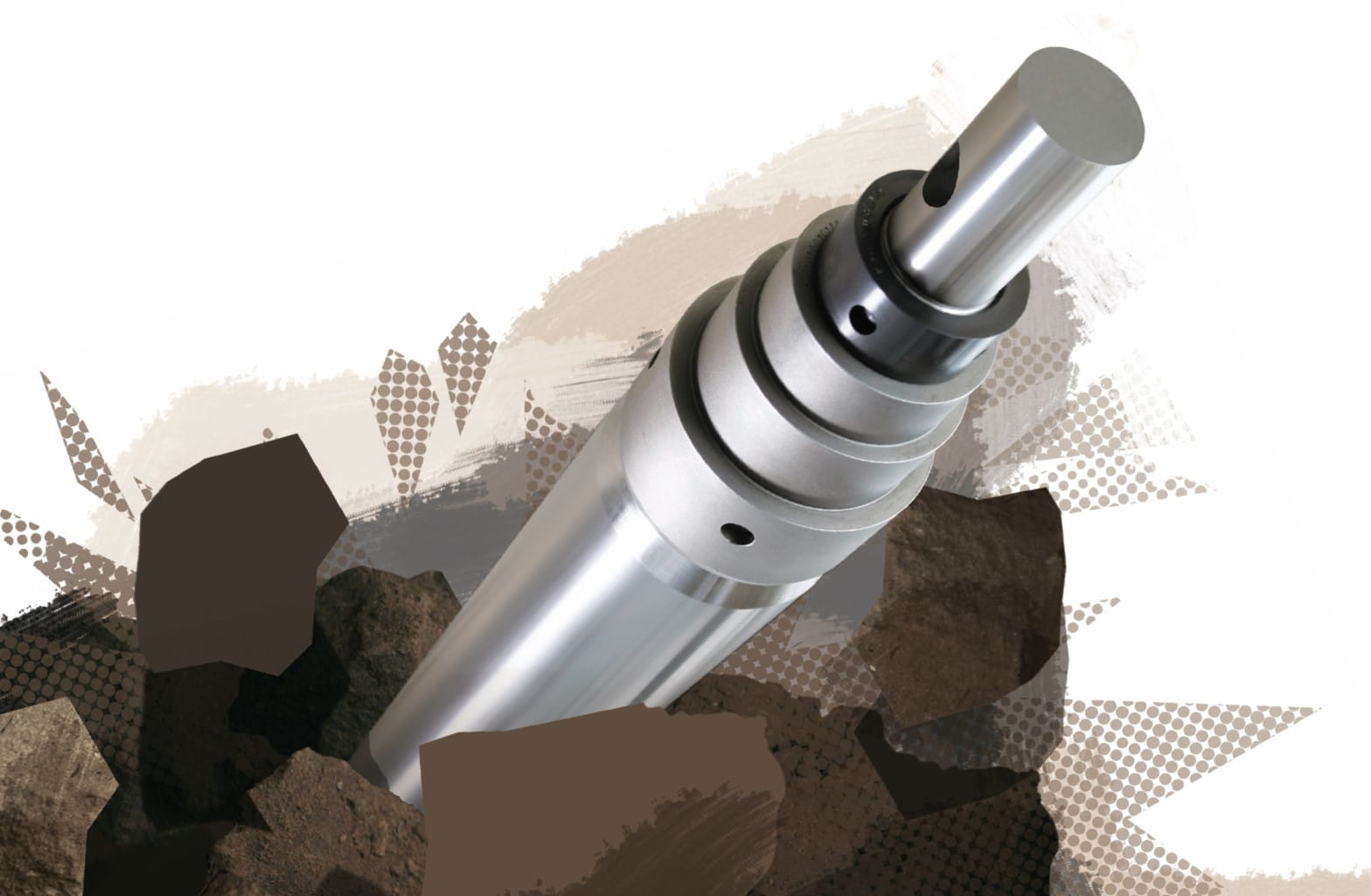

Pneumatic mole - 130 mm

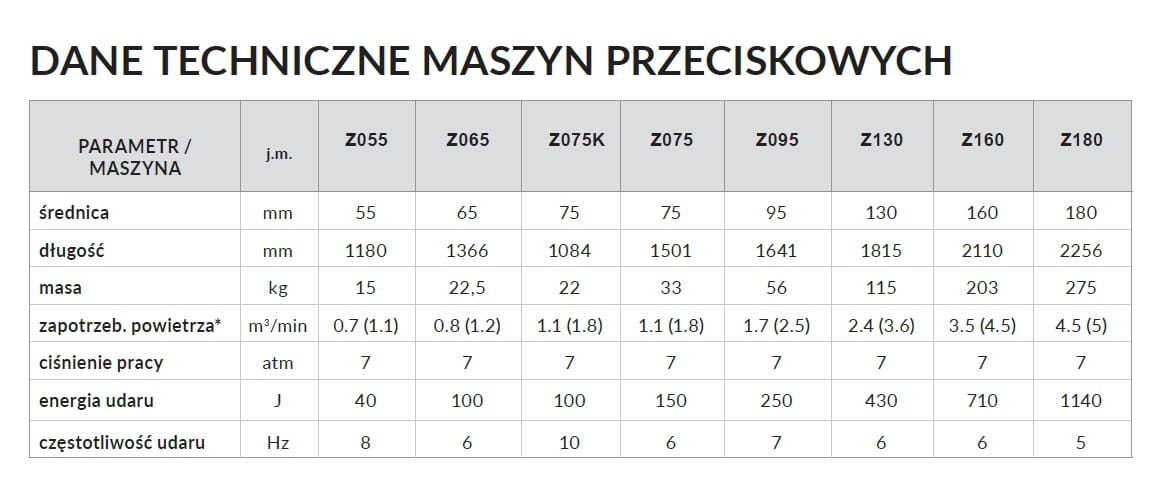

Technical data

Product description

The Z130 is the machine with the longest production history – this is where it all started. Over the years of production it was improved and refined up to the current version. This latest upgrade, produced since 2004, has kept all the advantages of its predecessor, such as very good accuracy and low operating costs, while gaining higher energy and very high durability thanks to a completely new head-to-cylinder connection and a new hammer. Because of its versatility, the Z130 is the most frequently purchased machine in Poland. Mainly thanks to the very wide range of work it is designed for, it allows both stand-alone jacking and jacking with simultaneous pulling-in of plastic pipes (PE, PVC). In addition, with extra accessories the bored holes can be enlarged to a diameter of 219 mm and pipes with diameters of 160 mm-200 mm can be pulled in. Using expanders makes sense if the "mole" is to be used mainly for installing pipes with diameters up to 130 mm, while diameters of 160 mm, 180 mm and 200 mm will occur only occasionally.

Machine application

Performing jacking with a diameter of 130 mm,

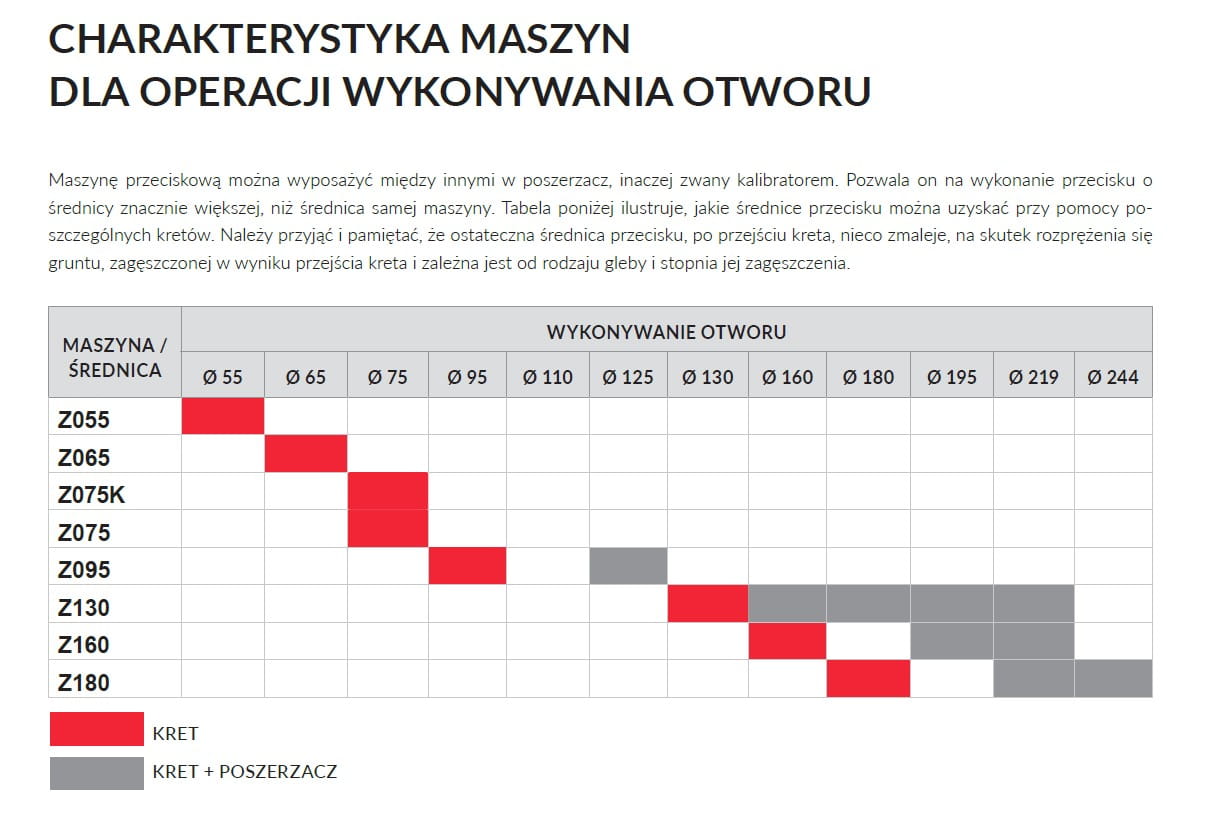

• Performing jacking with a diameter of 160 mm, 180 mm, 195 mm, 219 mm using expanders

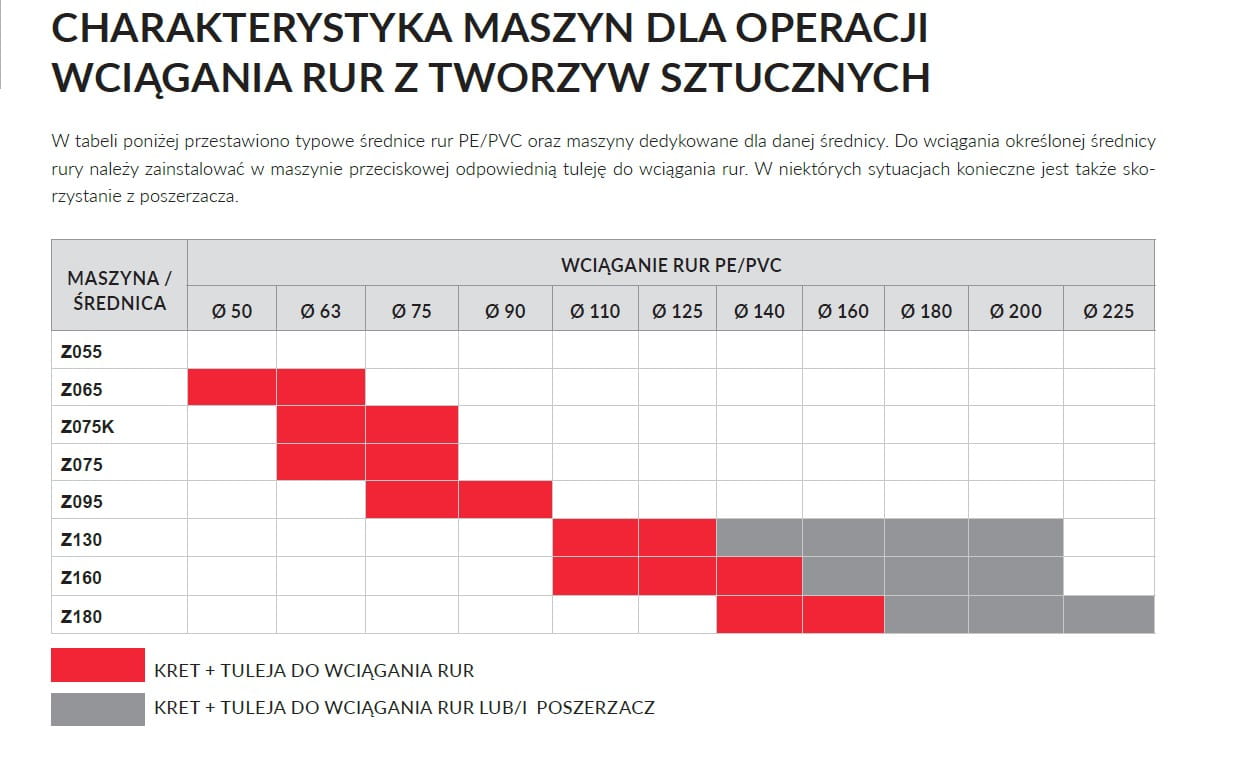

• Pulling in PE, PVC pipes with a diameter of 90 mm - 125 mm directly behind the device,
• Pulling in PE, PVC pipes using additional accessories, pipe diameters: 140 mm, 160 mm, 180 mm, 200 mm

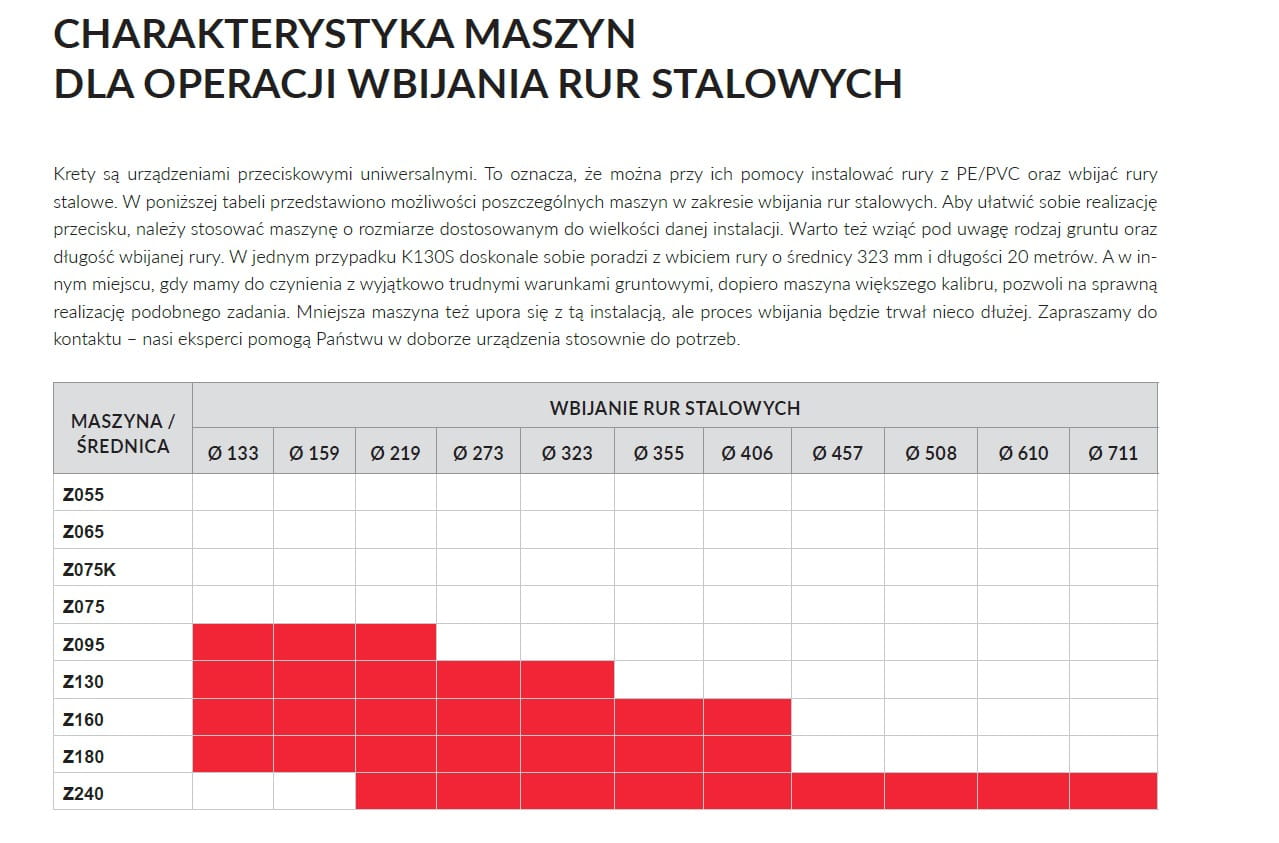

• Ramming steel pipes using cones: up to a diameter of 323 mm.

The set includes

mole-type jacking device with a diameter of 130 mm,

Available options

Ø 90-110 mm sleeve with accessories for pulling in PE/PVC pipes

Ø 125 mm sleeve with accessories for pulling in PE/PVC pipes

Set for enlarging the hole with an expander Ø160mm, Ø180mm, Ø195mm,

Ø219mm and for pulling in PE/PVC pipes up to Ø200mm

Set for ramming steel pipes

Ø133mm, Ø159mm, Ø219 mm, Ø273mm, Ø323mm. Spoil removal plate Ø133mm, Ø159mm, Ø219mm, Ø273mm, Ø323mm

Optical set (sighting scope + pole) 3 m

Optical set (sighting scope + pole) 2 m

EkoMax oil 5 litres

EkoMax oil 20 litres

Compressor – oiler hose, light, 10 m

Compressor – oiler hose, light, 20 m

Cutting tip for manual pulling-in of pipes from Ø 25 mm to Ø 55 mm

Cutting tip for manual pulling-in of pipes from Ø 25 mm to Ø 55 mm without the supply and control hose
