Pneumatic mole - 180 mm

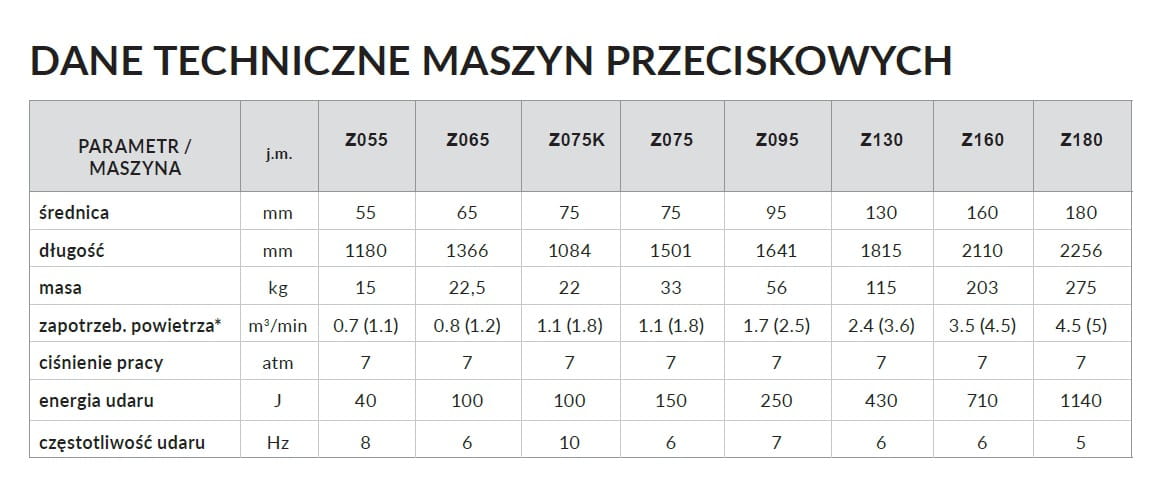

Technical data

Product description

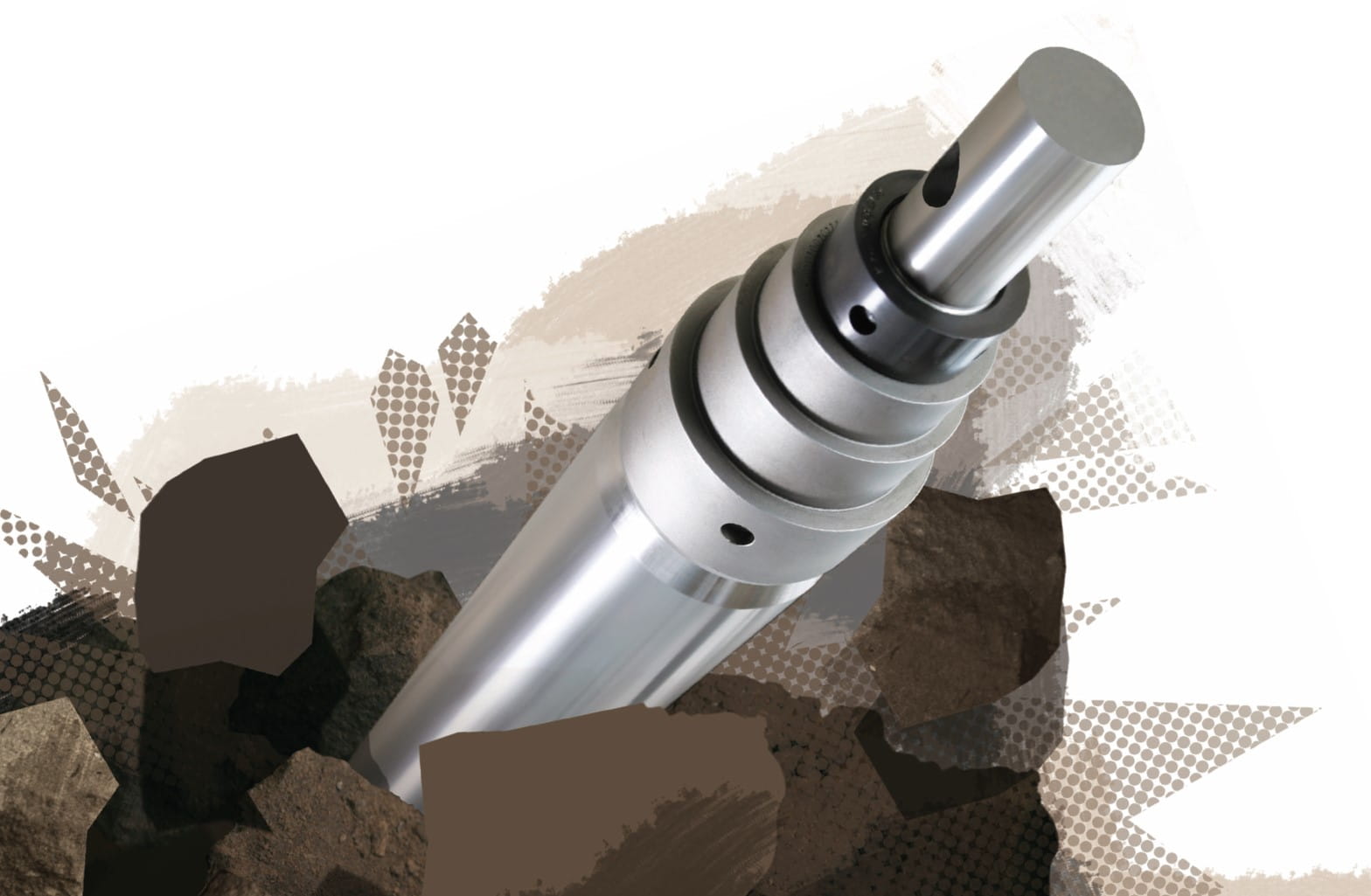

The Z180 is another product co-designed by our Customers. The need to fill the gap in the range with such a machine was driven by changing requirements for minimum pipe diameters for all kinds of installations, from water supply to gas and ICT. Only a few years ago the most popular “moles” were the 130s, i.e. moles with a diameter of 130 mm, which are ideal for installing Ø110mm pipes. Recently, however, there is an increasing need to install pipes with diameters of Ø160mm. The Z180 mole is designed mainly for pulling in Ø160mm plastic pipes and for ramming steel casing pipes with diameters up to 406 mm. Like all the other “moles” of the Z family, it has a reverse gear controlled pneumatically by a lever on the oiler, so it is also simple and safe to operate. Further advantages are low air consumption, compatibility with Z130 and Z160 accessories, and precise and fast operation.

Machine application

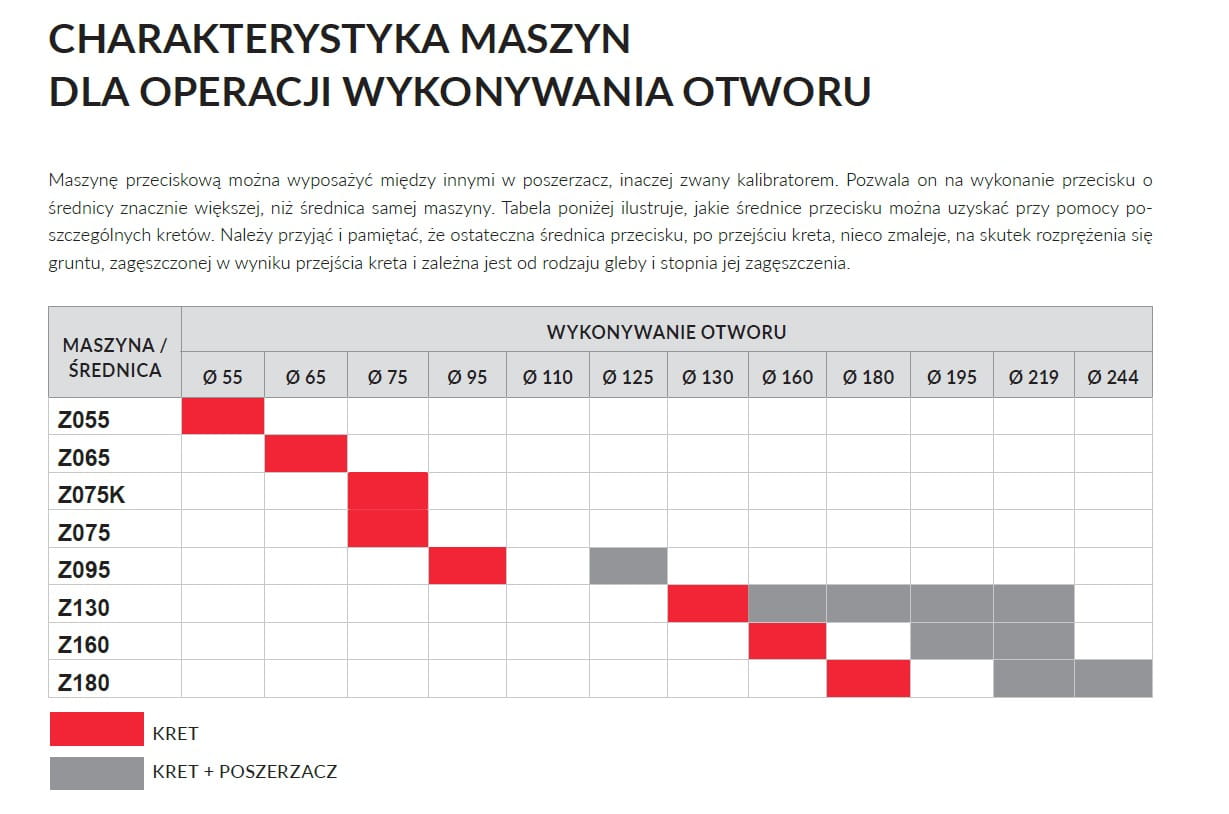

Performing stand-alone jacking with a diameter of 180 mm,

• Performing jacking using expanders 219 mm, 244 mm,

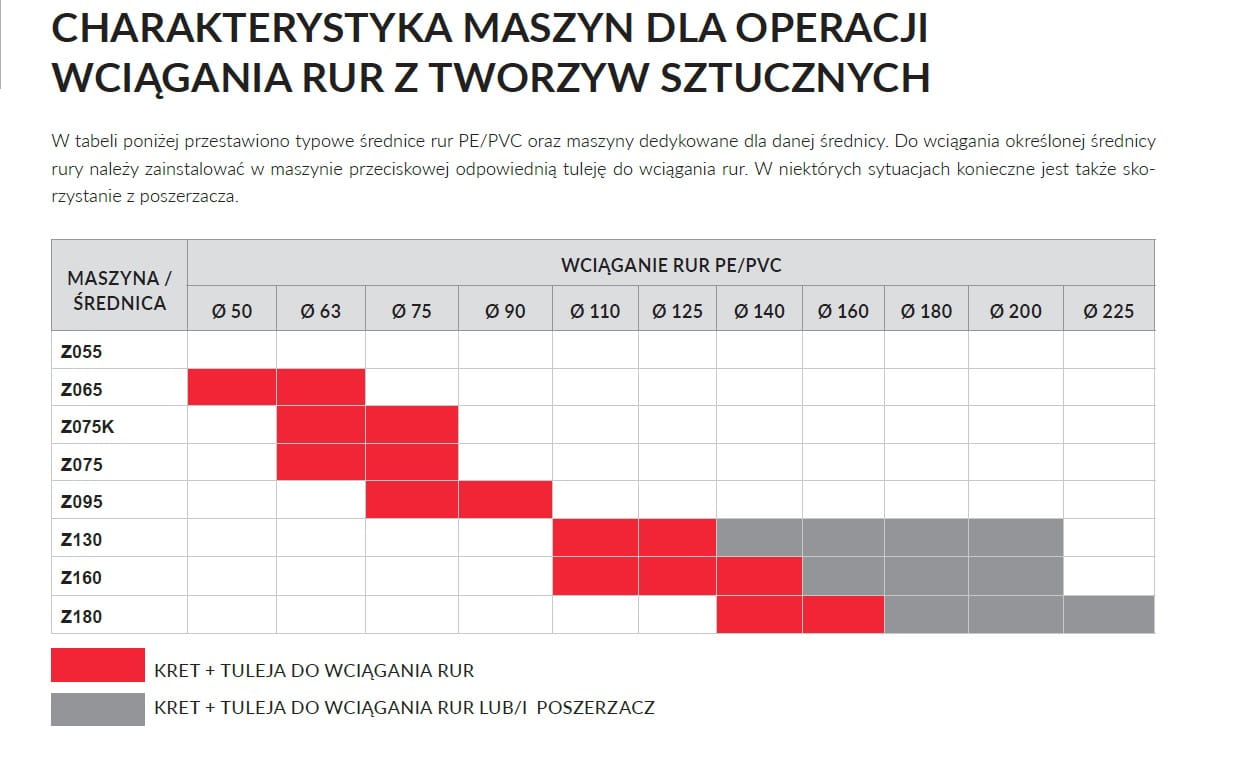

• Pulling in PE, PVC pipes 140-160 mm directly behind the machine,
• Pulling in PE, PVC pipes 180-225 mm using additional accessories,

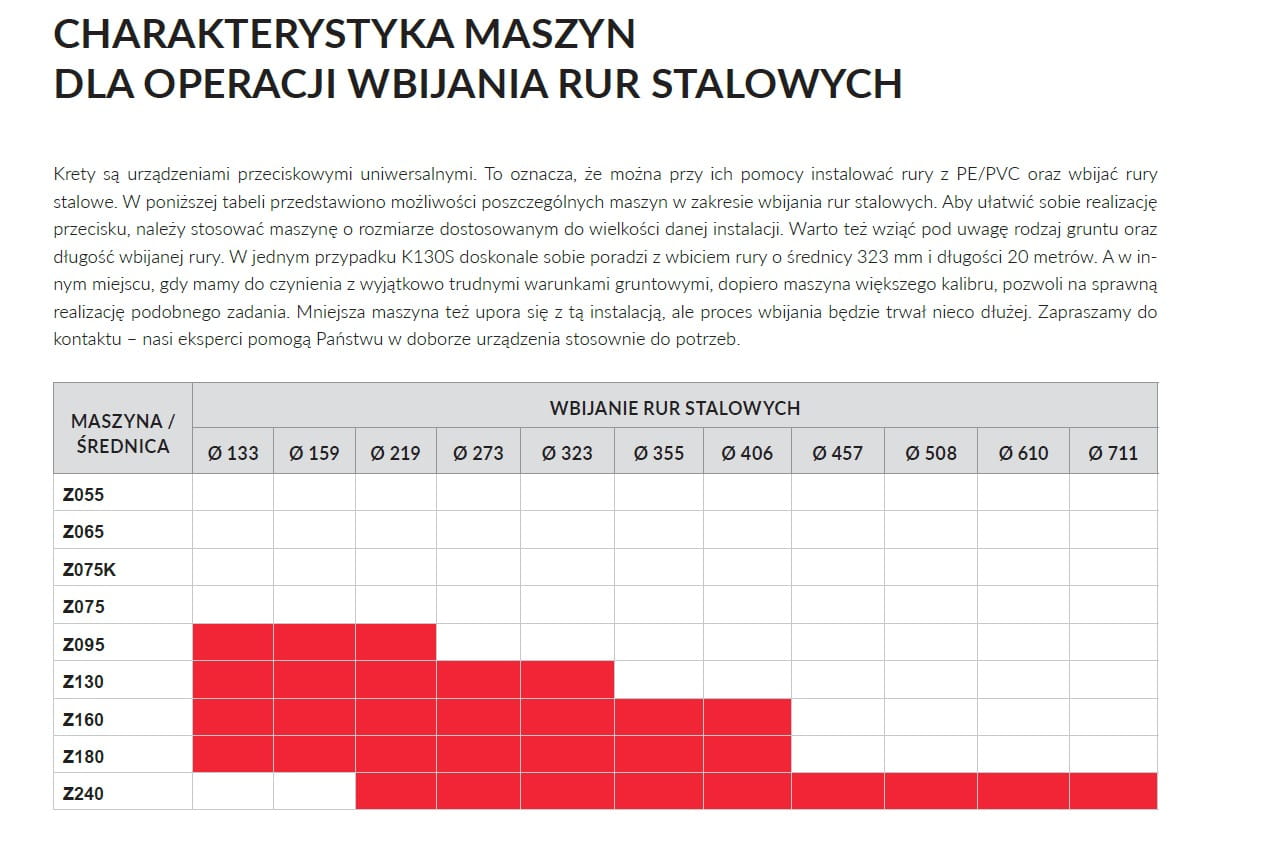

• Ramming steel pipes up to a diameter of 406 mm using cones.

The set includes

mole-type jacking device with a diameter of 180 mm,

Sleeve for pulling in PE/PVC pipes Ø160 mm, Ø200 mm

Auxiliary accessories for pulling in PE/PVC pipes

• Towing end for work with an expander
• Towing screw-in insert for pulling in pipes
• PE/PVC with expanders
• Transition line for pulling with a towing screw-in insert
• Cone for ramming steel pipes Ø90 - Ø190, Ø180 - Ø240, Ø230 - Ø290, Ø280 - Ø340, Ø356 - Ø406
• Blow-out plates for removing spoil from steel pipes, with compressor-oiler hose and locking pins, plus blow-out plugs
• Optical set (sighting scope + pole) 3 m
• Optical set (sighting scope + pole) 2 m
• EkoMax oil 5 litres
• EkoMax oil 20 litres
• Compressor – oiler hose, light, 10 m
• Compressor – oiler hose, light, 20 m
• Cutting tip for manual pulling-in of pipes from Ø 25 mm to Ø 55 mm
• Cutting tip for manual pulling-in of pipes from Ø 25 mm to Ø 55 mm without the supply and control hose
