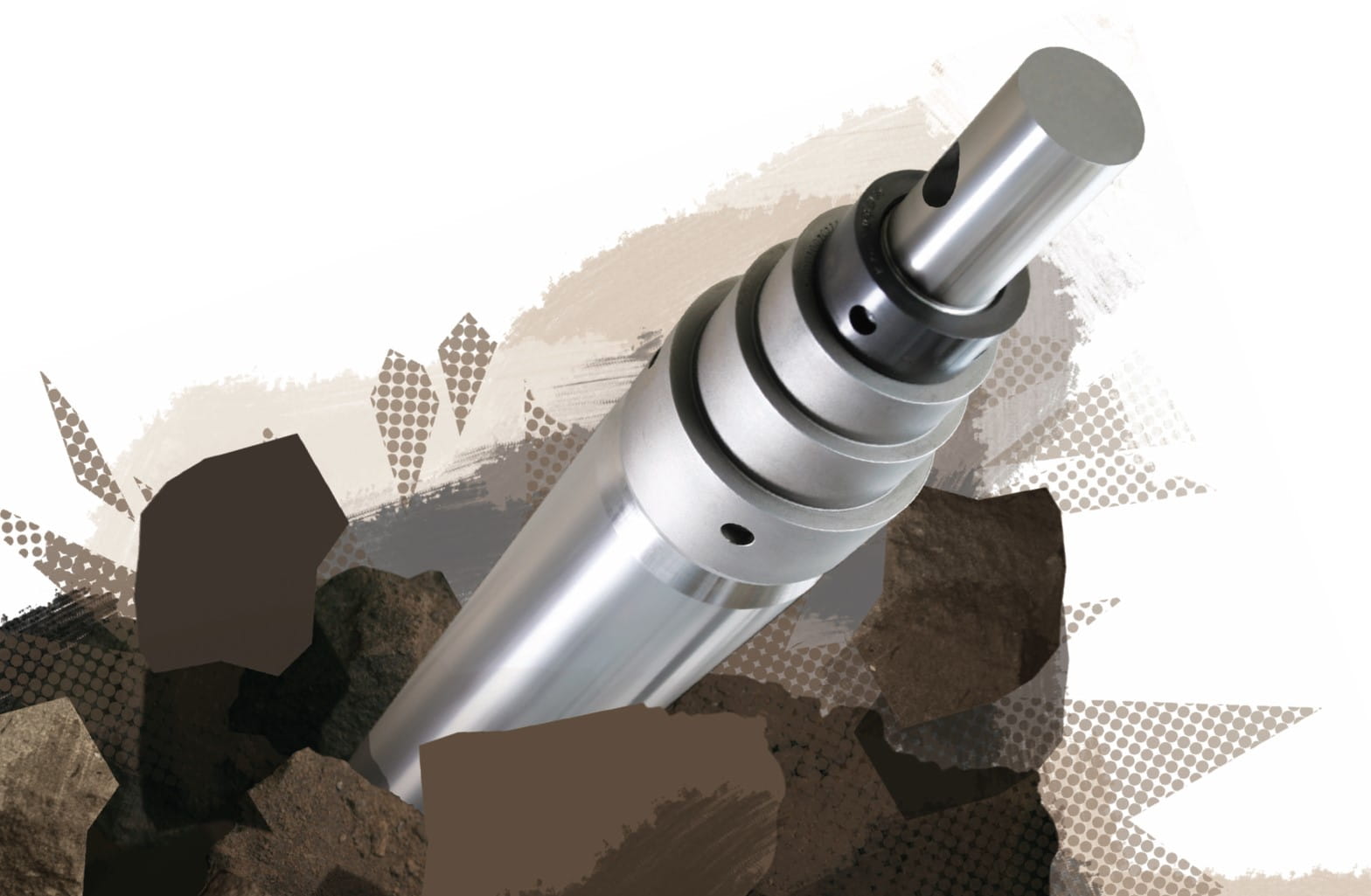

Pneumatic mole - 55mm

Jacking machine - 55 mm mole

Application:

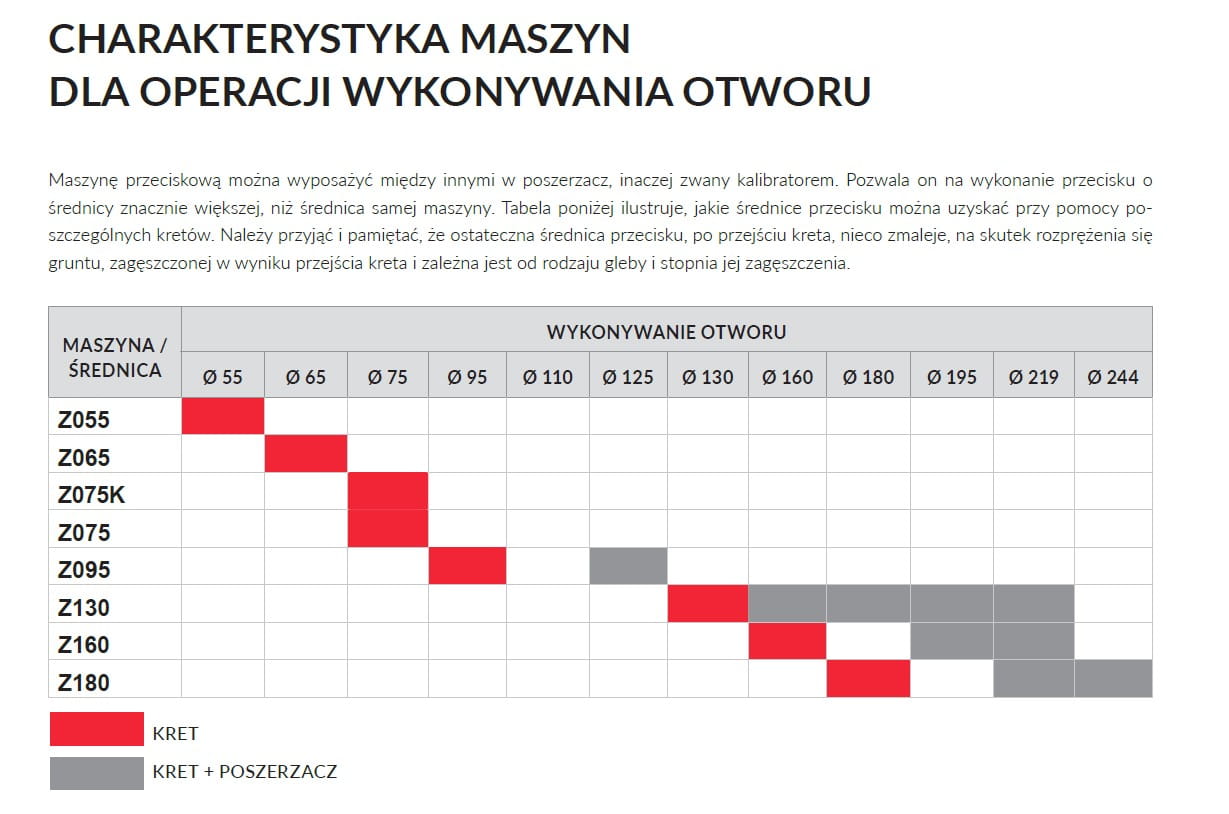

Making a jacking machine with a diameter of 55 mm

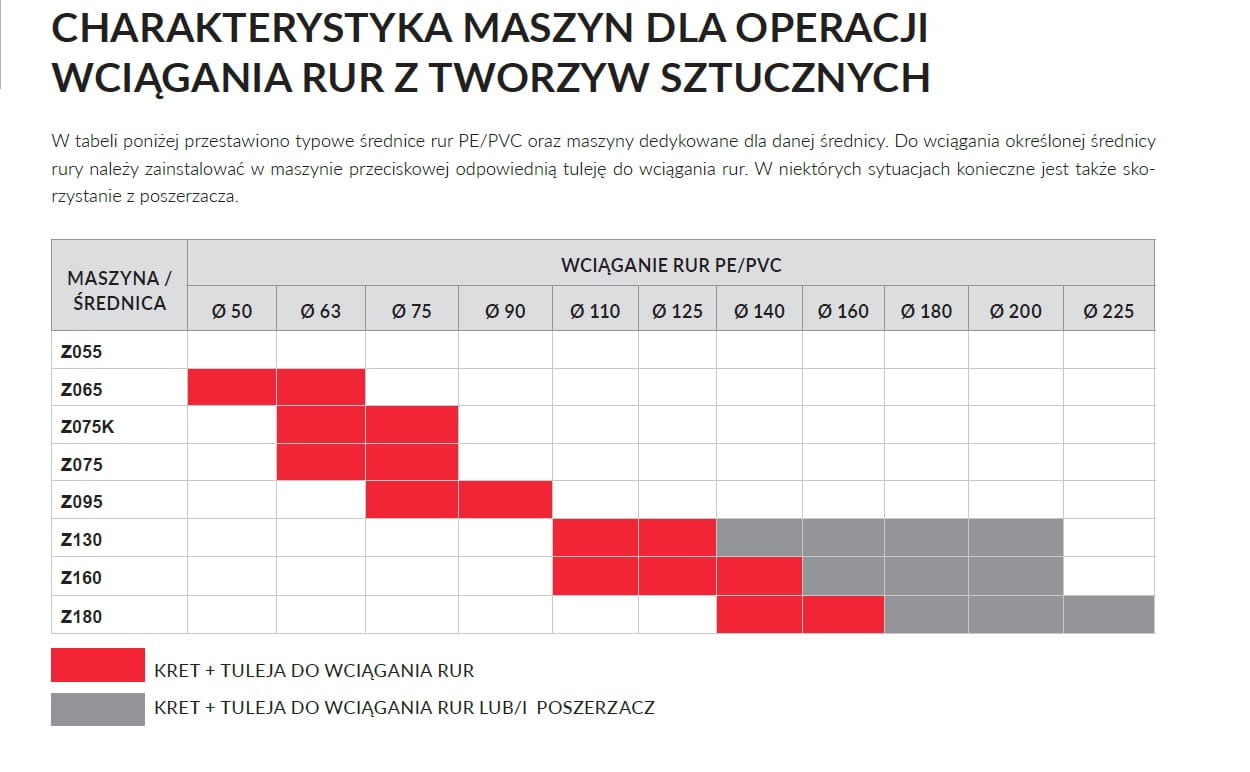

Manual pulling of pipes with diameters of 25-40 mm using a cutting tip

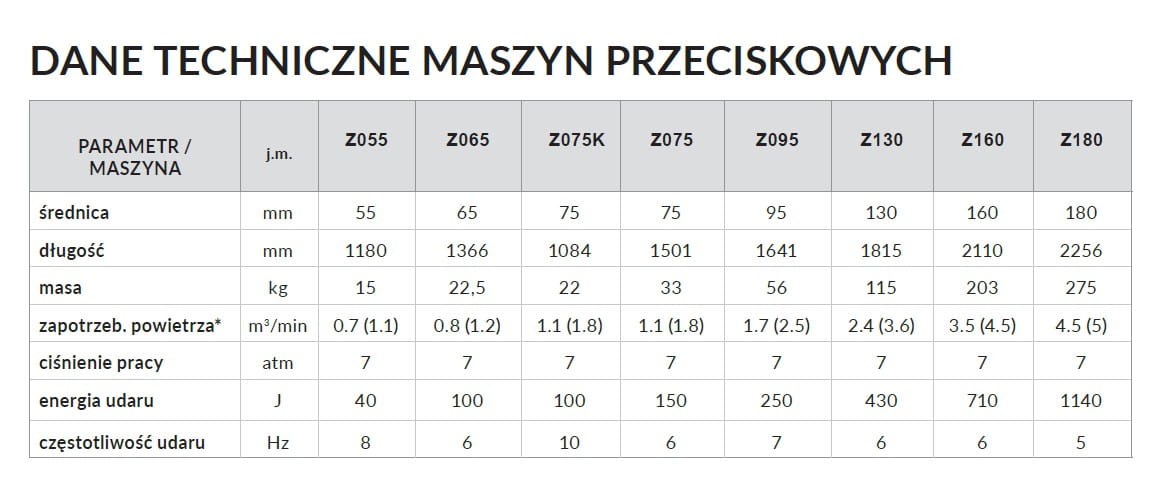

Technical data:

Diameter: 55 mm
Length: 1180 mm
Weight: 15 kg
Air consumption: from 0.7 m3/min (1.1 m3/min compressor recommended)
Working pressure: 7 atm
Impact energy: 40 J
Impact frequency 8 Hz
The set comprises:

Jacking machine with a diameter of 55 mm,
The Z 055 is our smallest and at the same time lightest jacking machine currently on offer. Like the rest of the machines we offer, it has a pneumatic FORWARD/REST reversing system. Thanks to this override system, it is possible to withdraw the machine in any ground conditions. In the case of moles with small diameters, this is particularly important because, when working with such a machine, it is often the case that the soil settles after the mole has passed, which, in the case of manual override, would make it impossible to withdraw the mole. The pneumatic control allows the mole to be withdrawn without problems in any situation and under any ground conditions.
The machine is ideally suited for drilling holes for Ø32 mm and Ø40 mm pipe installations used for fibre-optic buses.

Possible options
Optical set (telescope + pole) 3 m

EkoMax oil 5 litres

EkoMax oil 20 litres

Compressor-oil hose light 10 mb

Hose compressor - light oiler 20 mb

Hand cutting bit for pulling in pipes from Ø 25 mm to Ø 45 mm
