Pneumatic mole - 65 mm

Application:

Performing independent jacking ,
Pulling in PE, PVC pipes during jacking with a diameter of 50 mm and 63 mm,
Pulling in PE, PVC pipes using a cutting tip with a diameter of 25 - 55 mm.

Technical data:

Diameter: 65 mm
Length: 1366 mm
Weight: 22.5 kg
Air consumption: from 0.8 m3/min (1.2 m3/min compressor recommended)
Working pressure: 7 atm
Impact energy: 100 J
Impact frequency 6 Hz
The set comprises:

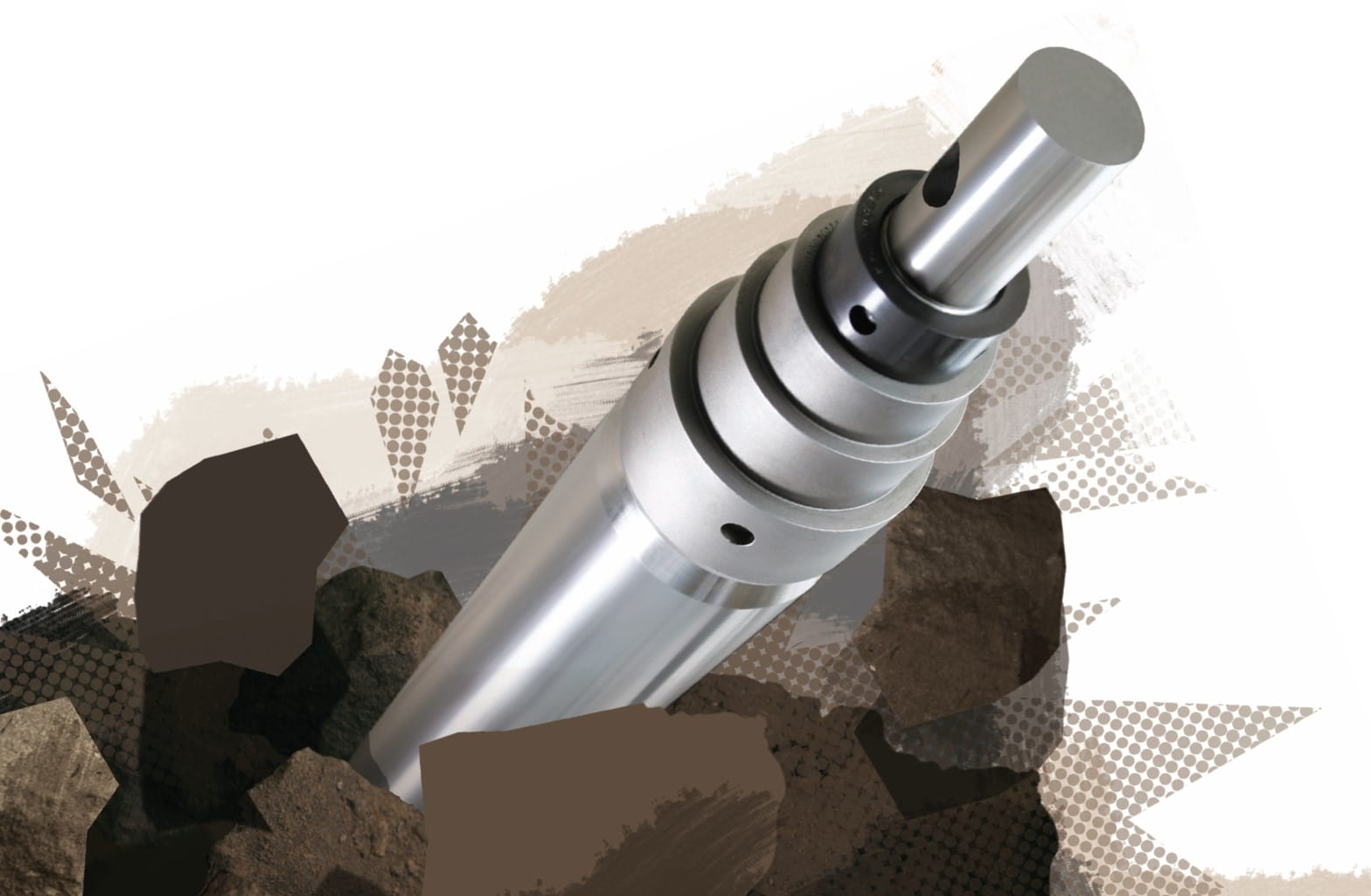

Jacking machine with a diameter of 65 mm
The Z065 is a very comfortable to use jacking machine, for the installation of small diameter pipes. The weight of the mole at 22 kg, and the very low air requirement make it a very popular model. It can be used to make the connection starting from the basement and ending e.g. in a manhole, i.e. completely trenchless, without interfering with gardens, lawns, etc. During jacking, pipes with diameters of 50mm or 63mm can be pulled in at the same time. It is primarily used for building connections to individual buildings and for trenchless work on electrical and telecommunications networks.

Possible options
Cutting sleeve for pulling in pipes Ø 50 mm
Cutting sleeve for pulling in pipes Ø 63 mm
Optical set (telescope + pole) 3 m
Optical set (telescope + pole) 2 m

EkoMax oil 5 litres

EkoMax oil 20 litres

Compressor-oil hose light 10 mb

Hose compressor - light oiler 20 mb

Hand cutting bit for pulling in pipes from Ø 25 mm to Ø 55 mm
Cutting tip for manual pulling in of pipes from Ø 25 mm to Ø 55 mm without
without power and control hose
