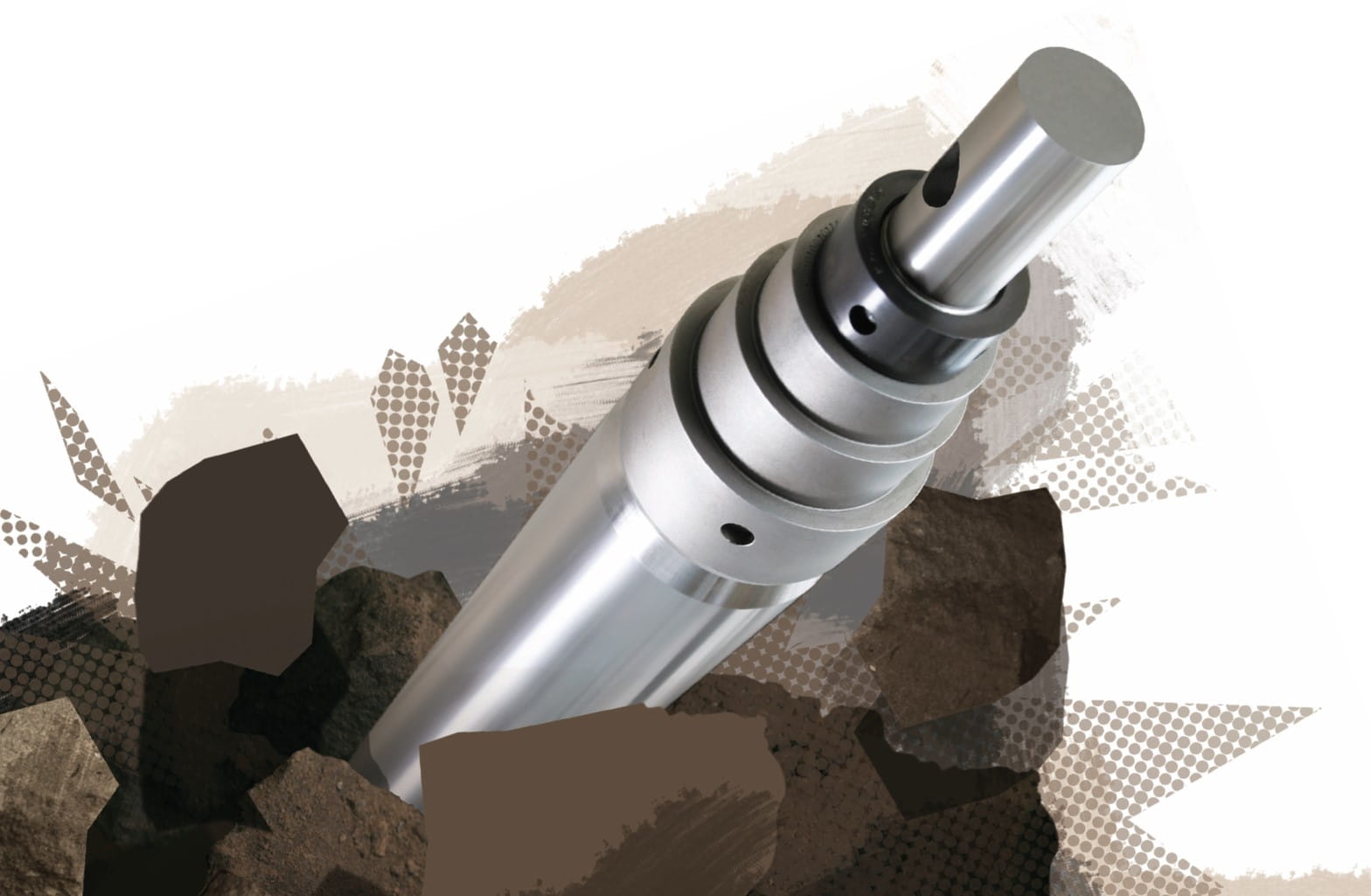

Pneumatic mole - 95 mm
Description
Application:

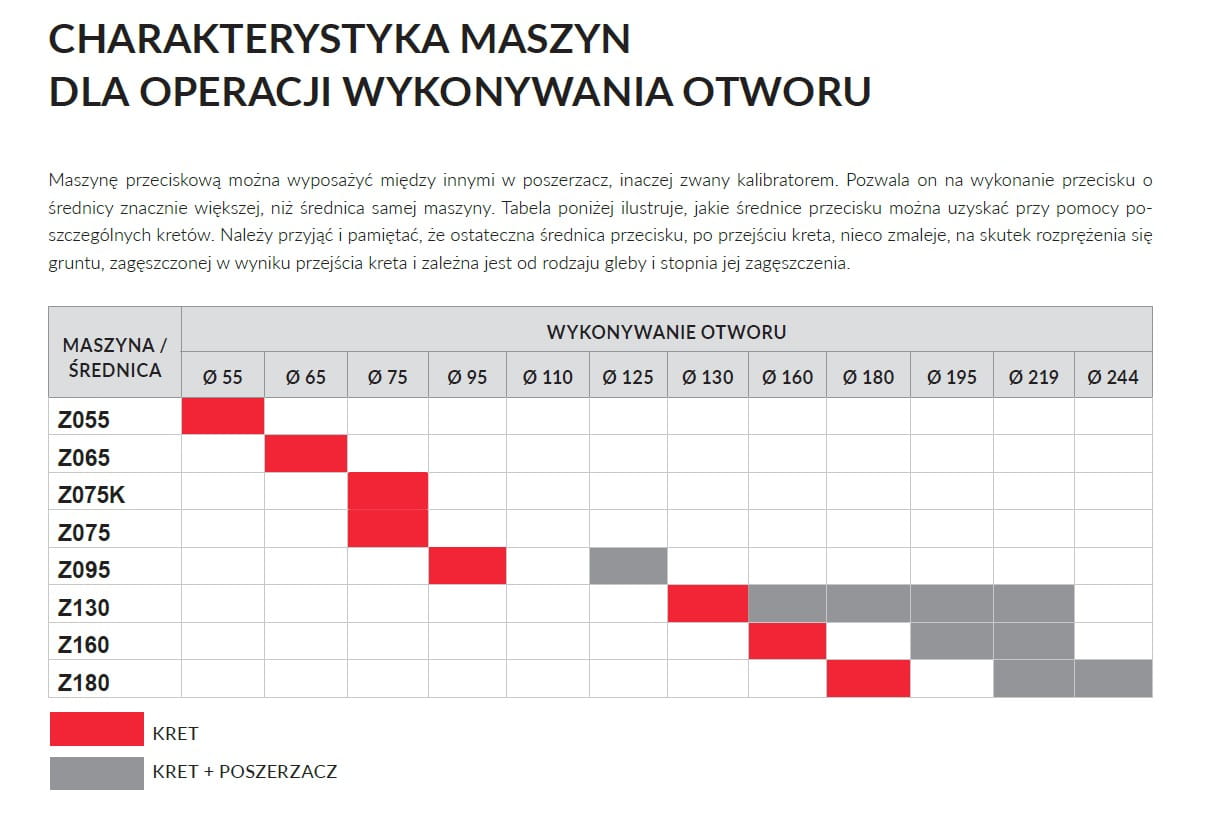

Carrying out 95 mm diameter jacking,
Carrying out 125 mm jacking with the use of wideners

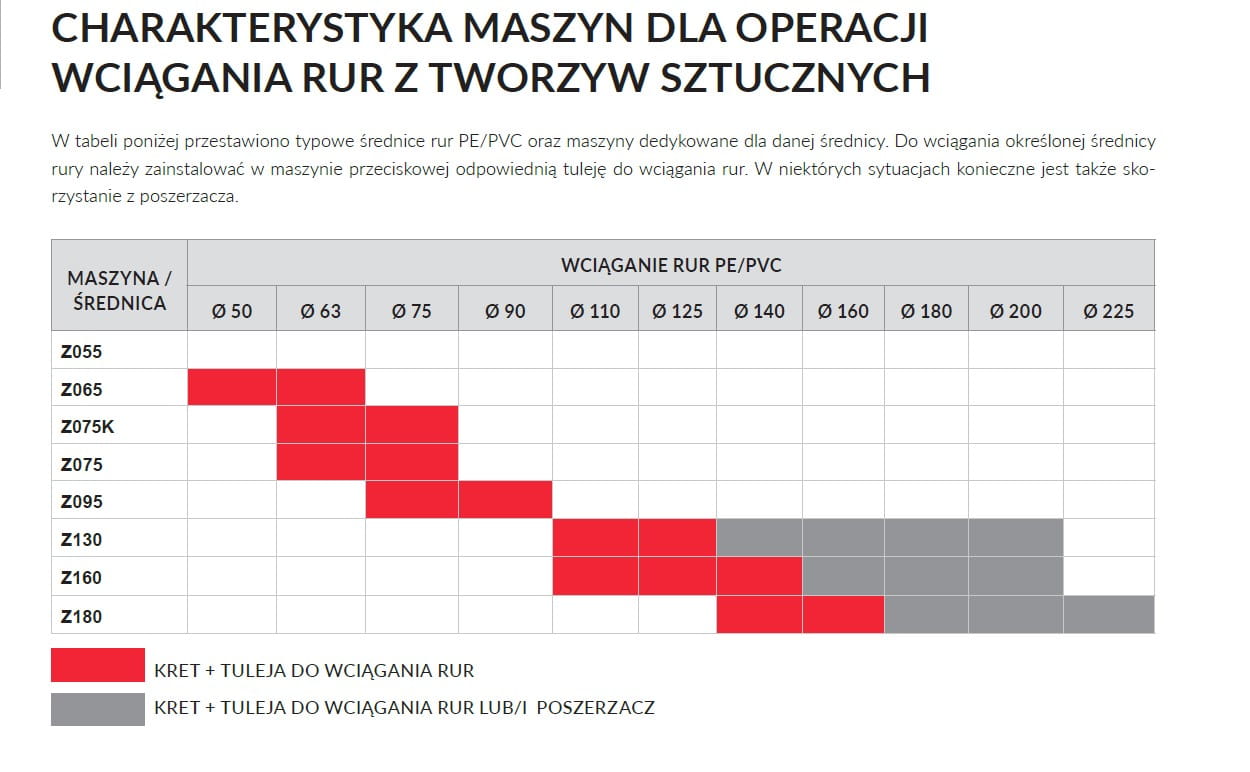

Pulling in PE, PVC pipes directly behind the mole with a diameter of 75 mm, 90 mm,
Pulling in PE, PVC pipes using a cutting bit with a diameter of 25 - 55 mm,

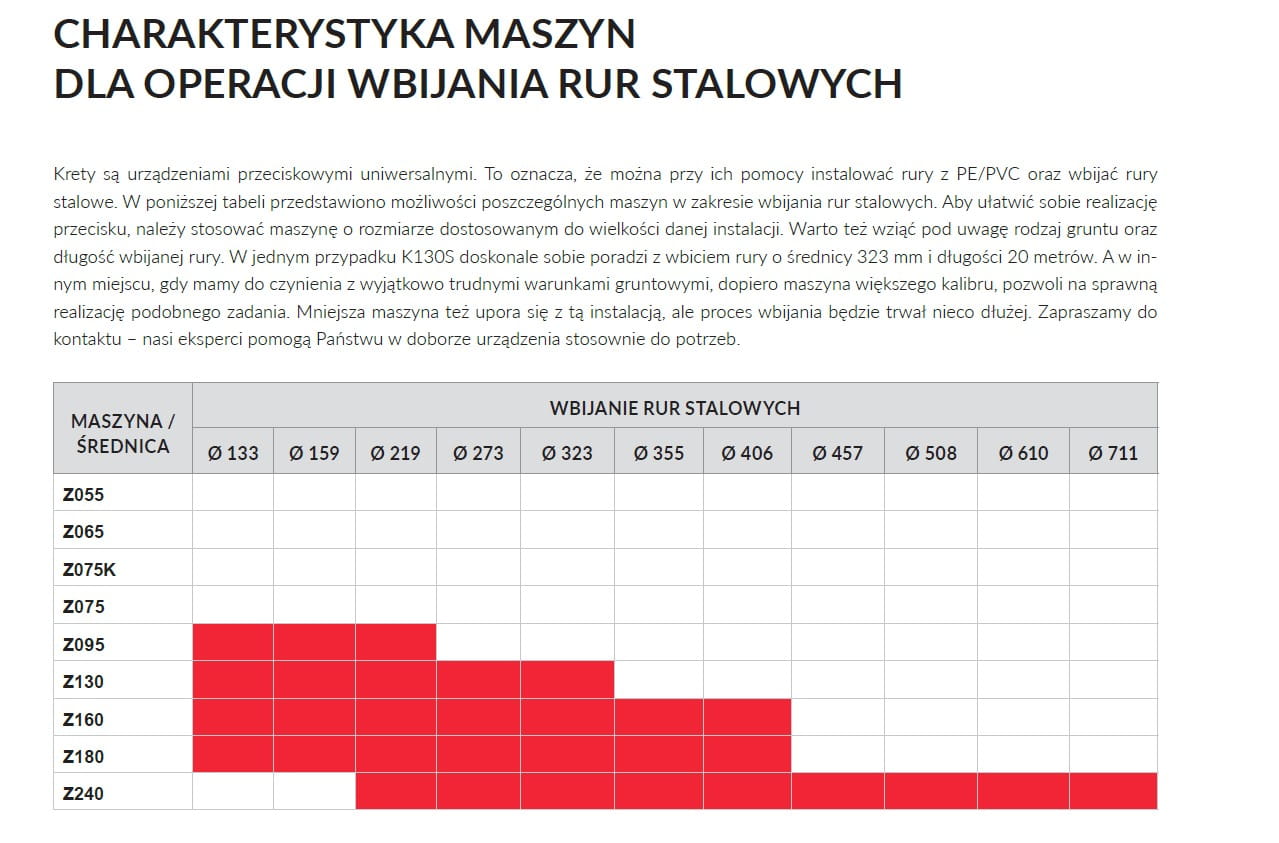

Driving in steel pipes up to 219 mm in diameter.

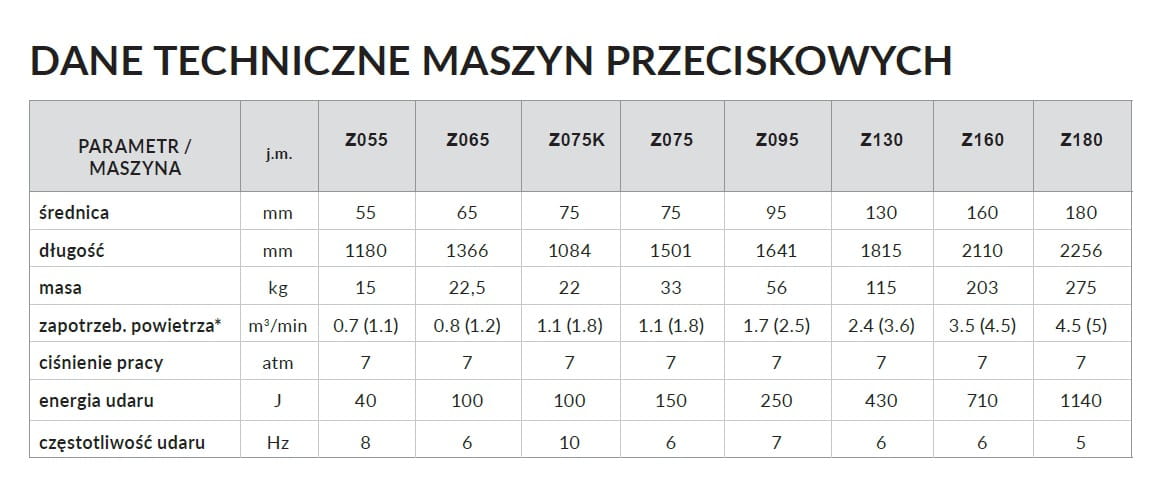

Technical data:
Diameter: 95 mm
Length: 1641 mm
Weight: 56 kg
Air demand: from 1.7 m3/min (2.5 m3/min compressor recommended)
Working pressure: 7 atm
Impact energy 250 J
Operating frequency 7 Hz
The basic set comprises:
95mm diameter jacking machine,
The Mole Z095 is suitable for independent jacking Ø 95 mm (with the possibility of manually inserting e.g. two Ø 40 mm pipes in a hollow tunnel) and for pulling in plastic pipes Ø 75 mm and Ø 90 mm. Steel pipes up to 219 mm in diameter can also be driven with this machine.
Possible options
Sleeve Ø 75 mm with fittings for inserting PE/PVC pipes
Sleeve Ø 90 mm with fittings for inserting PE/PVC pipes
Pipe insertion set for steel pipes Ø133mm, Ø159mm, Ø219mm
Extraction plate Ø133mm, Ø159mm, Ø219mm
Optical set (telescope + pole) 3 m
Optical set (telescope + pole) 2 m
EkoMax oil 5 litres
EkoMax oil 20 litres
Compressor-oil hose light 10 mb
Hose compressor - light oiler 20 mb
Hand cutting bit for pulling in pipes from Ø 25 mm to Ø 55 mm
Cutting tip for manual pulling in of pipes from Ø 25 mm to Ø 55 mm without
without power and control hose
Shipping costs
The price does not include any possible payment costs
