Second Typhoon 32/40 blowing kit
Description

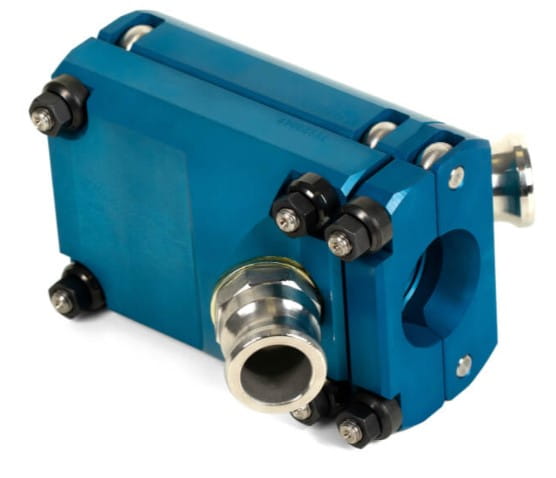

The Typhoon 32/40 kit is designed for use with single optical fibres or microtubes with diameters of 5-20 mm blown into HDPE 32 and 40 tubes. It is also possible to blow packages of microtubes*. The kit is separated into the head and the air connection which results in:
- small workpiece dimensions and ergonomic installation,
- the possibility of connecting the air connection directly to the pipe in the trench or the next well (in case you are working in a city and do not have much space to set up with all the equipment in one place,
- air supply on two sides at a 45° angle, which reduces the pressure drop by approx. 0.5 bar compared to a single 90° connection.
The Typhoon 32/40 head together with the Air Connection can operate as a stand-alone unit without the use of the MultiTank feeder. Installation of the fibre optic cable is then carried out manually. This functionality is also essential for the interlacing process.
*Further information on the blowing of microtube packages is available in the data sheet.
Parameters
| Optical fibre / microtube diameters | mm | 5—20 |
| Microduct package | mm | 2 x 12 3 x 10 |
| Tube diameters HDPE | mm | 32, 40 |
| Connector Head - Air connection | — | HDPE 32 |
| Air | ||
|---|---|---|
| Maximum pressure | bar | 15 |
| CAMLOCK air connection size | cal | 2 x ¾” |

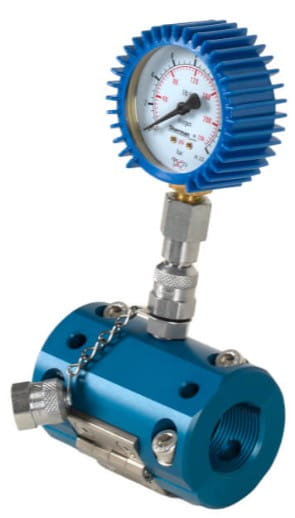

| Pressure measurement | — | Minimes connection on head |
| Head | ||
| Dimensions (W x D x H) | cm | 11 x 9 x 7 |
| Weight | kg | 0,9 |
| Air connection | ||
| Dimensions (W x D x H) | cm | 14 x 9 x 16 |
| Weight | kg | 2,6 |
| Case | ||
| Dimensions (W x D x H) | cm | 46 x 35 x 17 |
| Weight | kg | 7,8 |
