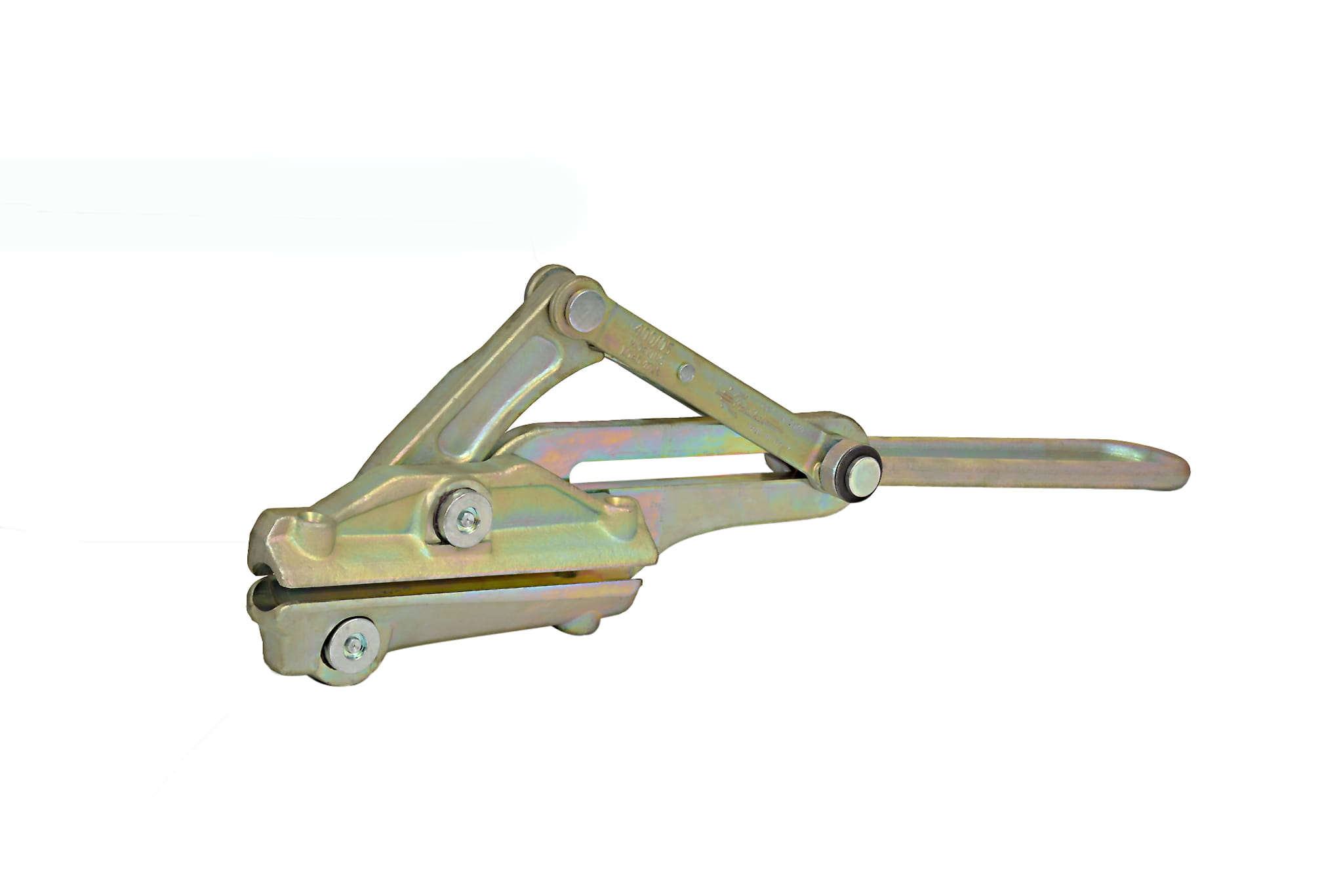

Self gripping clamps 18-32mm
Availability:
temporarily unavailable
Dispatched within:
24 hours
On warehouse:
0
Producer:
Tema Italy
Product code:
400/05
Description
Conductor tensioning grip
Working range
18-32 mm
Breaking force
235.00 kN
Working load
47.0 kN
Technical data
| Working range | 18-32 mm |
|---|---|
| Working load | 47.0 kN |
| Safe load | 88.0 kN |
| Breaking force | 235.00 kN |
| Gripping jaw length | 278 mm |
| Weight | 13.5 kg |
Key features
- Suitable for A.C - AAC - ACSR and copper conductors.
- Made of hot forged, heat treated, and cadmium plated high tensile alloy steel.
- A complete range of interchangeable aluminum liners allows the clamp to fit the exact conductor diameter.
- Each model of clamp is suitable for a wide range of conductors, therefore, the same clamp can be used for different conductors only by
- replacing aluminum liners.
- CONDUCTOR SELF-GRIPPING CLAMPS
- Safety WL 88,0 kN
