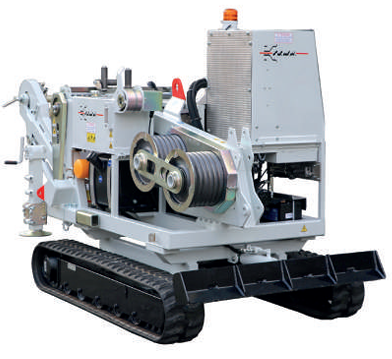

Self propelled hydraulic puller 35 kN
- ask about price
-
ask about product
-
recommend to a friend
Description
Standard features
• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes: preset
for the maximum pulling force and instant indication, counter-meter, speed
indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Mechanical back stabilizers and front plough
• Tracked undercarriages
• Balanced top lifting point and anchoring attachments
Optional equipment
06-PW Front pulley roller guided device for underground cabling
07-PW Hydraulic power take-off for remote reel-winder
28-PW T4L remote monitoring system with GPS geolocation
Special features upon request
05-PW Rope holder clamp (hydraulic)
13-PW Pre-heater (up to -30°C)
14-PW Large groove capstan with rope holder clamp
20-PW Dynamic speed pulling force control
36-PW Engine emission standard Stage IIIA - (36,5 hp) 27 kW
Performance
Max pull 35 kN
Max speed 5,1 km/h
Speed at max pull 1,5 km/h
Characteristics
Bull-wheels diameter 300 mm
Max rope diameter 13 mm
Weight 1750 kg
Engine
Diesel (36,5 hp) 27 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
