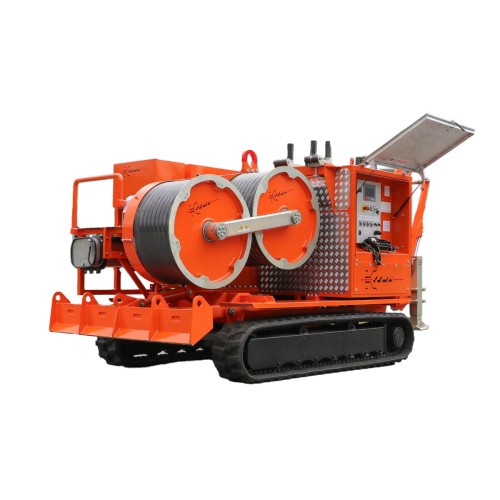

Self-propelled hydraulic puller-tensioner 70 kN

Self-propelled hydraulic puller-tensioner 70 kN capacity for single/double conductors stringing operations.

Standard features

• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes:
preset for the maximum pulling force and instant indication, countermeter,
speed indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• Dynamic speed pulling force control
• 2 sets of quick-release hydraulic connectors to drive up to 2 hydraulic
driven reel-stands or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Hydraulic back stabilizers and front plough
• Tracked undercarriages
• Balanced top lifting point and anchoring attachments

Optional equipment
04-PT Radio control unit with display HMI 4”
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
37-PT T4L remote monitoring system with GPS geolocation

Special features upon request
20-PT Pre-heater (up to -30°C)
42-PT Engine emission standard Stage IIIA - (85 hp) 63 kW

Puller performance
Max pull 70 kN
Max speed 5 km/h
Speed at max pull 1 km/h
Speed at 50 kN 2 km/h

Tensioner performance
Max tension 70 kN
Max speed 5 km/h

Characteristics
Adherence-wheels diameter 800 mm
Max conductor diameter 40 mm
Max rope diameter 18 mm
Weight 5000 kg

Engine
Diesel (73 hp) 54 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
