Typhoon 50/63 blowing kit
Availability:
temporarily unavailable
Dispatched within:
10 days
On warehouse:
0
Producer:
-
Product code:
WT0521
Description
Optical fibre / microduct diameters
5—20 mm
HDPE pipe diameters
50, 63 mm
Technical data
| Optical fibre / microduct diameters | 5—20 mm |
|---|---|
| Microduct bundle | 2 x 12 mm 3 x 12 mm 5 x 10 mm 7 x 10 mm 8 x 10 mm |
| HDPE pipe diameters | 50, 63 mm |
| Coupling Head – Air Connection | HDPE 50 |
| Weight | 1.1 kg |
| Weight | 3.8 kg |
| Weight | 10.0 kg |
| Air | |
| Maximum pressure | 15 bar |
| CAMLOCK air connection size [inch] | 2 x 1” |
| Pressure measurement | Minimess connector on the head |

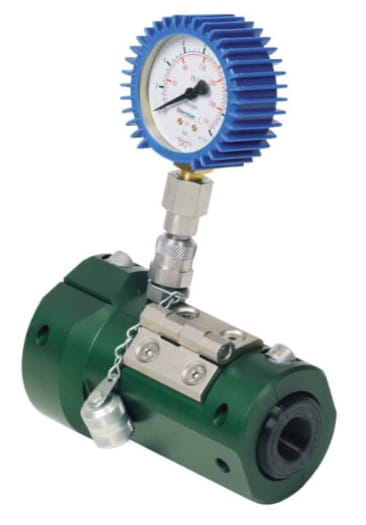

| Head | |
| Dimensions (W x D x H) | 14 x 10 x 9 cm |

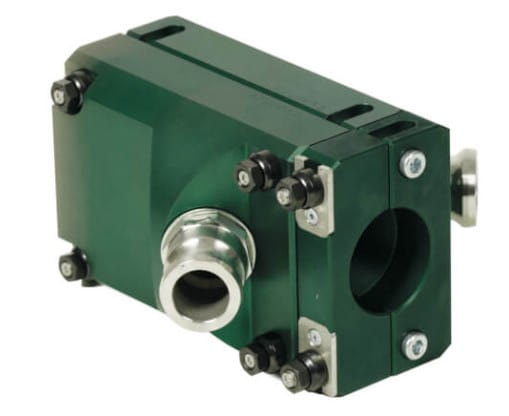

| Air connection | |
| Dimensions (W x D x H) | 18 x 12 x 19 cm |
| Case | |
| Dimensions (W x D x H) | 46 x 35 x 17 cm |
Product description
The Typhoon 50/63 kit has been designed for blowing microducts individually and in bundles* into HDPE 50 and 63 pipes. It is also possible to blow 5-20 mm optical fibres and to install into HDPE 32 and 40 pipes using a reducer behind the air connection**. The kit is split into the head and the air connection, which results in:
*More information on blowing microduct bundles is available in the data sheet.
Key features
- small component dimensions and ergonomic installation,
- the possibility of connecting the air connection directly to the pipe in the trench,
- air supply from two sides at a 45° angle, which reduces the pressure drop by approx. 0.5 bar compared to a single 90° connection.
- **Accessory kit made to order.
