Universal Cable Stripper with quick-release system
Availability:
running out
On warehouse:
5
Producer:
-
Product code:
S20
Description

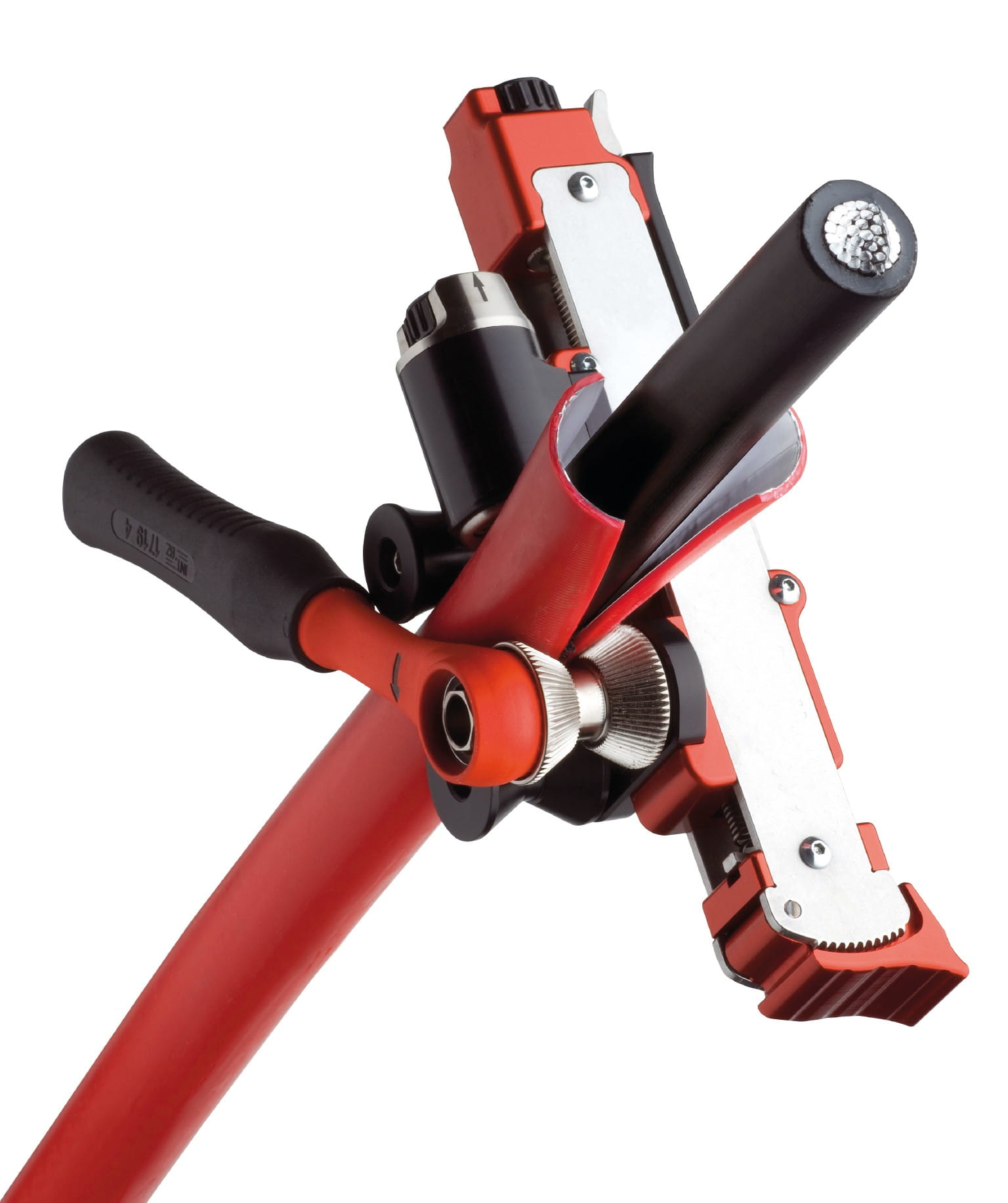

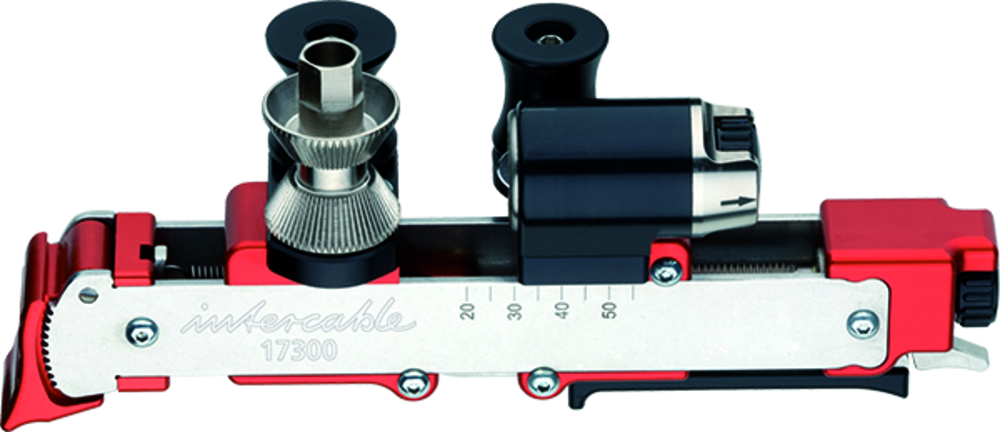

Universal stripping tool dedicated to cables with armor
Working range
16-54 mm
Dimensions
230x85 mm
Insulation thickness
0-5 mm
Technical data
| Model | S20 |
|---|---|
| Working range | 16-54 mm |
| Insulation thickness | 0-5 mm |
| Application | Polyethylene / aluminum outer sheath. |
| Maximum diameter of tool rotation | 300 mm |
| Working range ø | 16 - 54 mm |
| Dimensions | 230x85 mm |
| Weight | 1.3 kg |
Key features
- For stripping the outer shell with armor
- aluminum, nn, sn

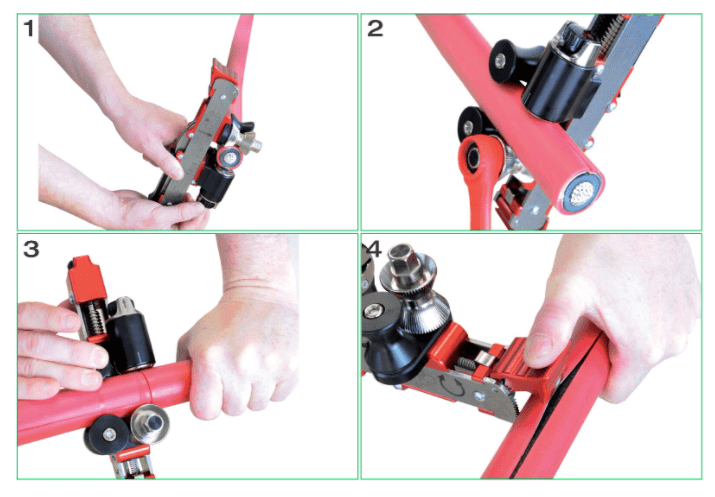

- Longitudinal and circumferential cutting
- Additional claw for extraction of hard shell
- Initial setting on the appropriate diameter
- of the cable is done by adjusting the knob.
- Attaching the tool to the cable is done
- automatically when the lever is tightened
- Cutting depth adjustable in steps of 0.1 mm
- Switching between longitudinal and circumferential cutting
Set composition
- Stripping tool
- Ratchet knob
- Soft nylon case
It is possible to purchase individual items
- S20/1 - Insulation stripping tool
- S20/4 - Ratchet
