Wedge Clamp 18,3-32,0 mm BL 225 kN
Availability:
running out
Dispatched within:
production 30 days
On warehouse:
1
Producer:
Tema Italy
Product code:
403/02
Description
Wedge grip for tensioning ACSR conductors
Working load
100 kN
Grip weight
6.5 kg
Technical data
| Working range ACSR | 18.3-32,0 mm |
|---|---|
| Working range steel rope | 18.3-22,5 mm |
| Working load | 100 kN |
| Grip weight | 6.5 kg |
| Weight of wedge insert | about 2.0 kg (pair) |
| Sling | 16x1100 mm |

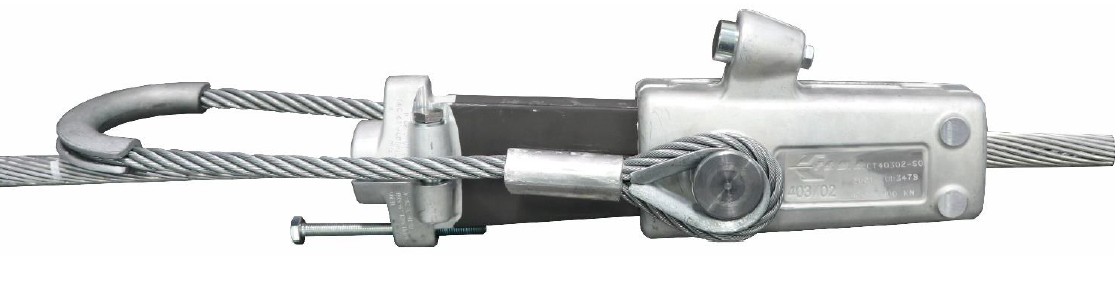

- Wedge type clamp 403/02 complete with steel sling 16mm diam x 1100 mm and protection U
- saddle, suitable for:
- aluminum conductors with diameter range from Ø18.3 to Ø32mm
- 18,3-20,4 mm, wedge pair code CT41302L19-S00
- 20,5-22,5 mm, wedge pair code CT41302L21-S00
- 22,6-24,5 mm, wedge pair code CT41302L23-S00
- 24,5-26,9 mm, wedge pair code CT41302L25-S00
- 27,0-29,4 mm, wedge pair code CT41302L27-S00
- 29,5-32,0 mm, wedge pair code CT41302L30-S00
- Weight: - Clamp body 6,5 kg
- Wedge pair approx. 2,0 kg
