Wedge Clamp 24,5-38,5 mm BL 275 kN
Availability:
running out
Dispatched within:
production 30 days
On warehouse:
1
Producer:
Tema Italy
Product code:
403/03
Description

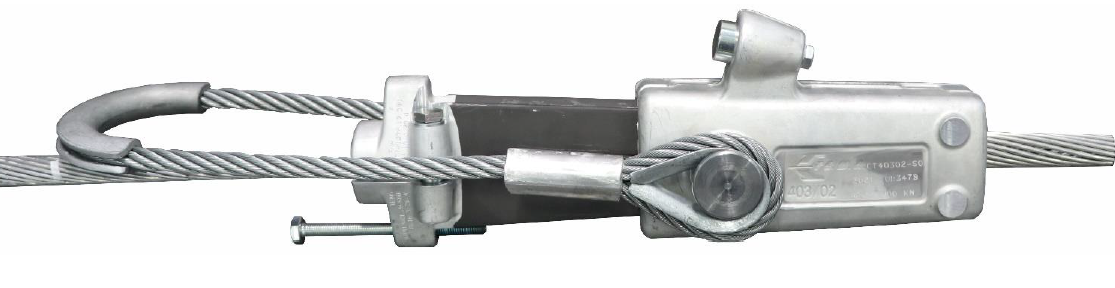

Wedge grip for tensioning ACSR conductors
Working load
130 kN
Working range
24.5-38,5 mm
Technical data
| Working range | 24.5-38,5 mm |
|---|---|
| Working load | 130 kN |
| Grip weight | 6.5 kg |
| Weight of wedge insert | 2.8 kg (pair) |
- Wedge type clamp 403/03 complete with steel sling 20mm diam x 1400 mm and U protection saddle, suitable for:
- aluminum conductors with diameter range from Ø24.5 to Ø38.5mm
- 30,1-32,0 mm, wedge pair code CT41303L31-S00
- 32,1-34,0 mm, wedge pair code CT41303L33-S00
- 34,1-36,2 mm, wedge pair code CT41303L35-S00
- 36,3-38,5 mm, wedge pair code CT41303L37-S00
- Weight: - Clamp body 6,5 kg
