Wedge Clamp 9,0-24,5 mm BL 130 kN
Availability:
temporarily unavailable
Dispatched within:
production 30 days
On warehouse:
0
Producer:
Tema Italy
Product code:
403/01
Description
Wedge grip for tensioning ACSR conductors
Working load
60 kN
Grip weight
2.5 kg
Technical data
| Working range ACSR | 9-24,5 mm |
|---|---|
| Working range steel rope | 9-18,2 mm |
| Working load | 60 kN |
| Grip weight | 2.5 kg |
| Weight of wedge insert | about 1.2 kg (pair) |
| Sling | 14x900 mm |

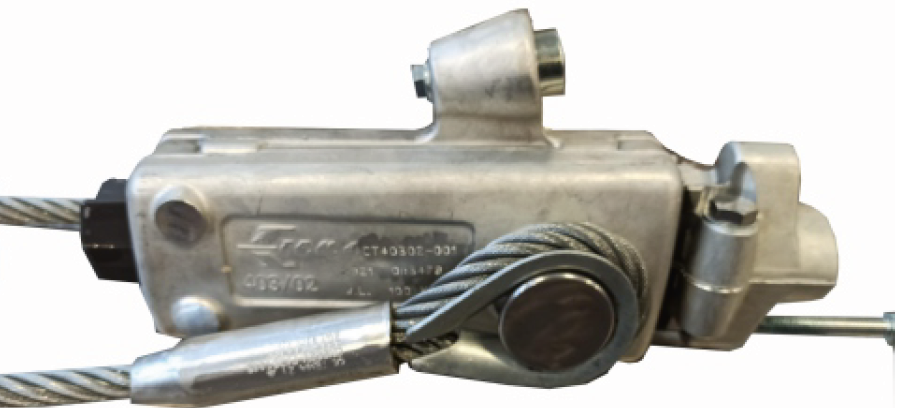

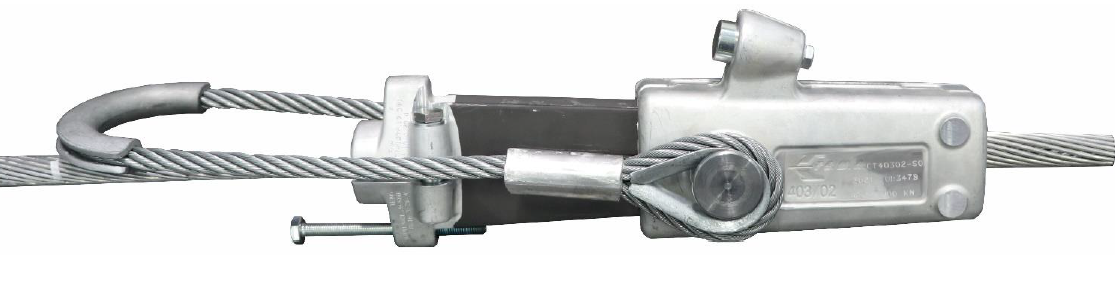

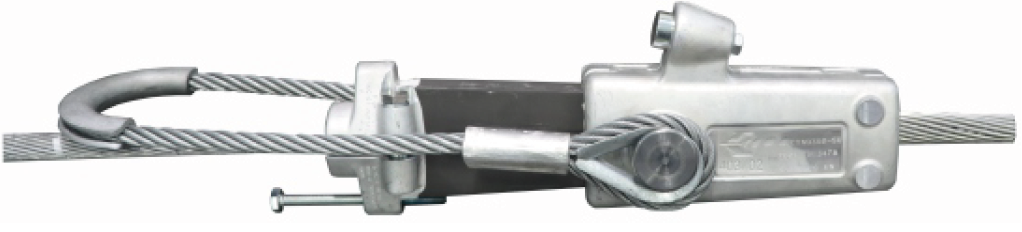

- Wedge type clamp 403/01 complete with steel sling 14mm diam x 900 mm and protection U
- saddle, suitable for:
- aluminum conductors with diameter range from Ø9.0 to Ø24,5mm
- 9,0-10,7 mm, wedge pair code CT41301L10-S00
- 10,8-12,5 mm, wedge pair code CT41301L11-S00
- 12,6-14,3 mm, wedge pair code CT41301L13-S00
- 14,4-16,1 mm, wedge pair code CT41301L15-S00
- 16,2-18,2 mm, wedge pair code CT41301L17-S00
- 18,3-20,4 mm, wedge pair code CT41301L19-S00
- 20,5-22,5 mm, wedge pair code CT41301L21-S00
- 22,6-24,5 mm, wedge pair code CT41301L23-S00
- Weight: - Clamp body 2,5 kg
- Wedge pair approx. 1,2 kg
