Y2 Connector
Availability:
temporarily unavailable
Dispatched within:
10 days
On warehouse:
0
Producer:
-
Product code:
WT0522
Description
Y2 Connector
Installed optical fibre / microduct diameters
5—20 mm
Coupling Head – Y-Connector
HDPE 32
Technical data
| Installed optical fibre / microduct diameters | 5—20 mm |
|---|---|
| Coupling Head – Y-Connector | HDPE 32 |
| Weight | 5.0 kg |
| Weight | 8.1 kg |
| Existing cable | |
| Maximum quantity | 2 pcs |
| Maximum diameter | 16 mm |
| Air | |
| Maximum pressure | 15 bar |
| CAMLOCK air connection size [inch] | 1 x ¾” |
| Pressure measurement | Minimess connector on the head |
| Other | |
| Dimensions (W x D x H) | 23 x 13 x 12 cm |
| Case | |
| Dimensions (W x D x H) | 46 x 35 x 17 cm |
Product description

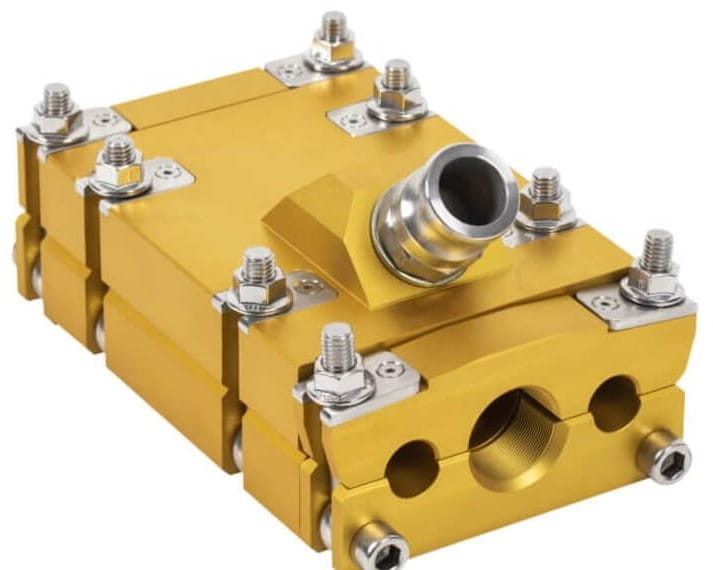

The Y2 connector is used for inserting an optical fibre or microduct into HDPE 32 and 40 ducts that already contain an optical fibre or microduct. It works with the Typhoon 32/40 head.
As standard, additional blowing is possible if the pipe contains 1 or 2 cables with a diameter of up to 16 mm. Accessories allowing installation of optical fibre into HDPE pipe with a larger number of existing cables can be made to order.
