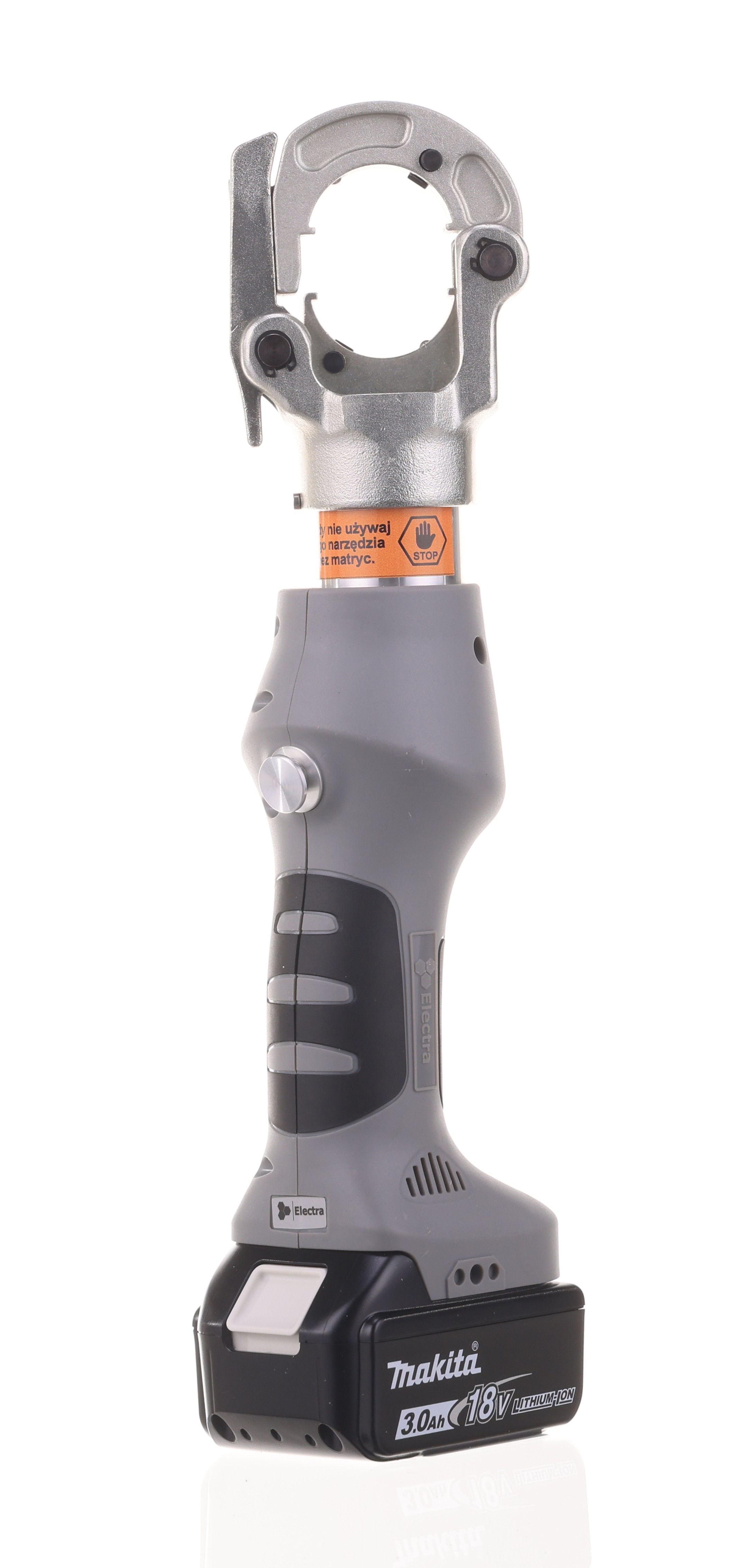

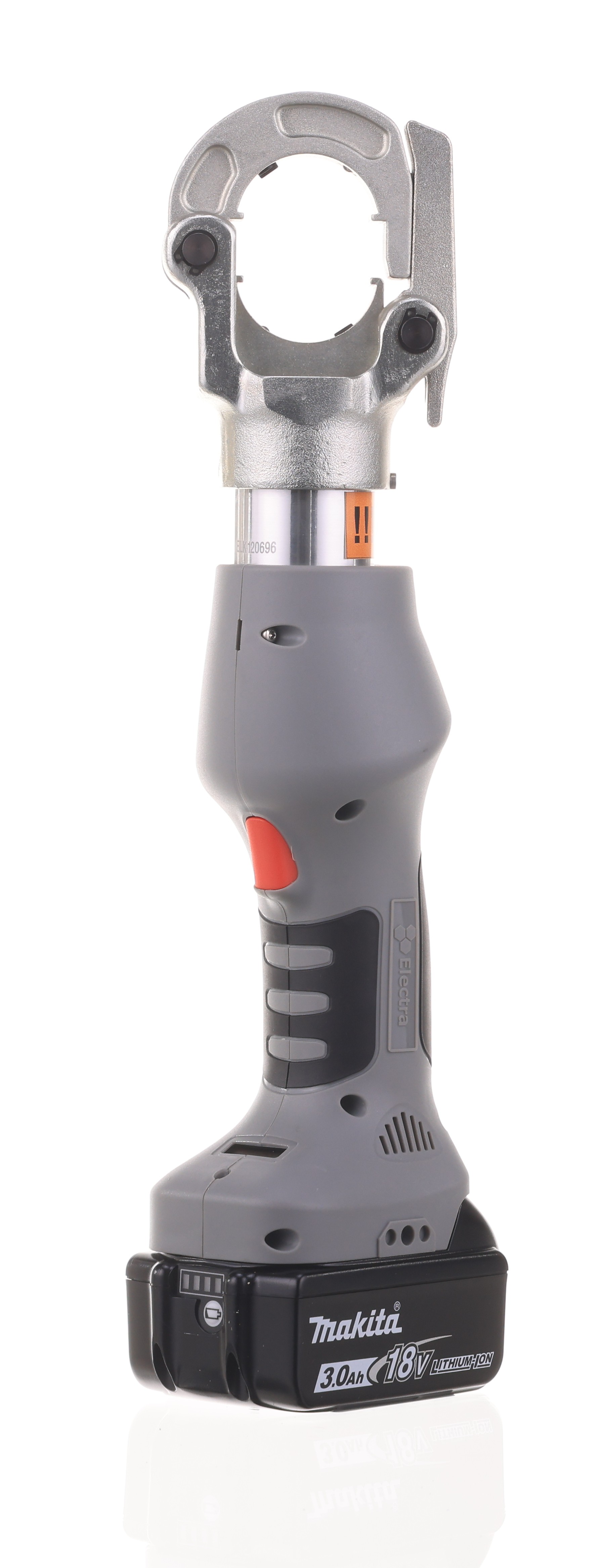

Akumuliatorinis presas 6-300 mm2, M22 serija

Model E22 NANO

Die series 22

Snap-on head

Weight 2.55 kg

Piston stroke 17 mm

Working range :

Al. 6-300 mm2

Cu 6-300 mm2

Pressing 2-8 seconds

Working pressure 700 bar

Pressure 60 kN

360 degree rotating head

Biodegradable oil

Operating range at -20 to +40 degrees C

Height 355x95x85 mm

Power supply :

Makita Li-Ion 18.0 V, 2.0 Ah battery pack

Charger with active cooling system:

cools the battery thanks to the built-in fan

during charging

Battery type : Lithium Ion/LI-Ion

Battery capacities: 1.3-5.0 ( 2.0 Ah standard battery )

Charging time: about 22 min

Charger power supply 230 V

LED indication of battery charge

LED indication of battery charge status

LED panel with battery data and number of presses

Automatic pressure fuse

Manual / automatic piston return

Stop scissor operation / piston return - immediately

LED illumination of the work area - 2 diodes

Single-stage pump ( uniform clamping )

Composite handle

Handle for attaching to a belt or hanging up

The set includes :

E22 NANO cordless press

Makita charger

Makita E18/2.0 rechargeable battery - capacity 2.0 Ah ,

Plastic carrying case

Instruction manual

Set without dies - for optional selection https://electrasklep.pl/pl/c/Matryce/67

Options :

Additional battery

Mains adapter

Milwaukee battery adapter

Matrices for selection ( page 116 of Electra Polska catalog ) series 22 pressure 60 kN https://electrasklep.pl/pl/c/Matryce/67

MR22 - Dies for Cu standard

MD22 - Die for Cu DIN

MA22 - Die for Al. DIN

MC22 - Dies for thin-walled Al.

MRU22 - Die for sector conductor reforming

MK22 - Dies for crimping AL/AFL

ME22 - Dies for pressing AsxSn connectors
