GR-H Drum and Reel Holder

Prieinamumas: temporarily unavailable

Išsiųsta per: production 30 days

On warehouse: 0

Pristatymas.: Kaina neįtraukia galimų mokėjimo išlaidų. patikrinkite pristatymo metodus.

Kaina: 4 375,00 €

Įprasta kaina:

4375.00

vietoje pcs

produktas neprieinamas

pridėti į pageidavimų sąrašą

Tiekėjas: -

Produkto kodas: GR-H 4,0

Aprašymas

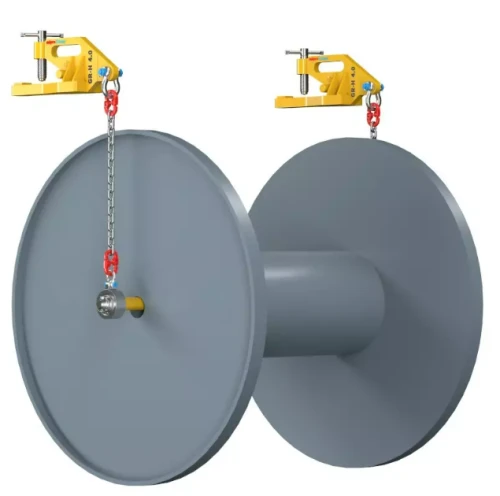

GR-H Drum and Reel Holder
Load capacity of 4000 kg
The sling is used for lifting cable drums in the horizontal axis using the bucket of a construction machine.
The sling allows the cable to be unrolled from the suspended drum thanks to the use of slide bearings.
The width of the cable drum must not exceed 1400 mm and the drum must have a through hole with a diameter of more than 65 mm
Meets the provisions of the Machinery Directive: 2006/42/EC
Made according to harmonized standard: PN-EN 13155
Dimensions L(1617mm) K(1400mm) B(1491mm) A(51mm ) H(1200mm) W(584mm) E(333mm) P(215mm) M(100mm) I(150mm) F(70mm)
Weight 80kg
