Kabelio būgno keltuvas 4000 kg
Aprašymas

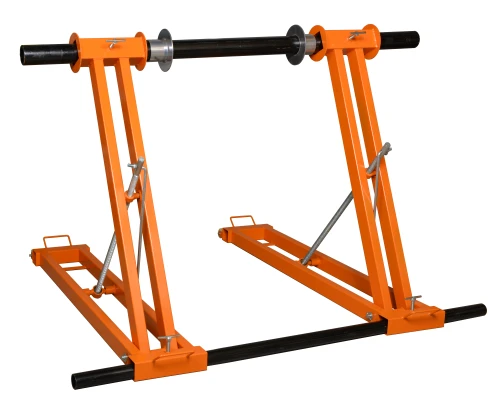

Scissor lifts for cable drums
Base made of stable profile that does not cause sinking in the field
Screw axle lock
Multi-stage adjustable axle clamping spacing
Easy to operate drum lifting
Axles with a diameter of 70 mm- for the drum, the second for stabilizing the structure possible as an option
Lifting and lowering based on a massive turnbuckle
BASIC TECHNICAL DATA:
Model K200/4
Load capacity of 4000 kg
Dedicated after drums/rails 200-2400 mm
Axle tube 70x2000 mm
Including plates to protect the drum
Construction profile 100x100x2,5
Weight of one stand 45,5 kg
Weight of the set ready for operation 140 kg
The set includes :
Lift frame 2 pcs. , working axis 70 mm , stop discs KT 70 2 pcs.
Optional : stabilizing axis 60 mm
