Presas / Akumuliatorinės žirklės 6-240 mm2, M22 serija

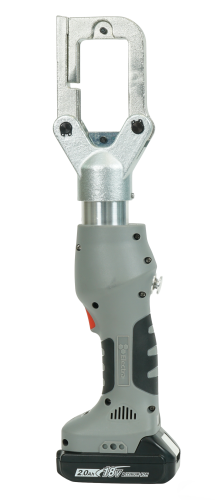

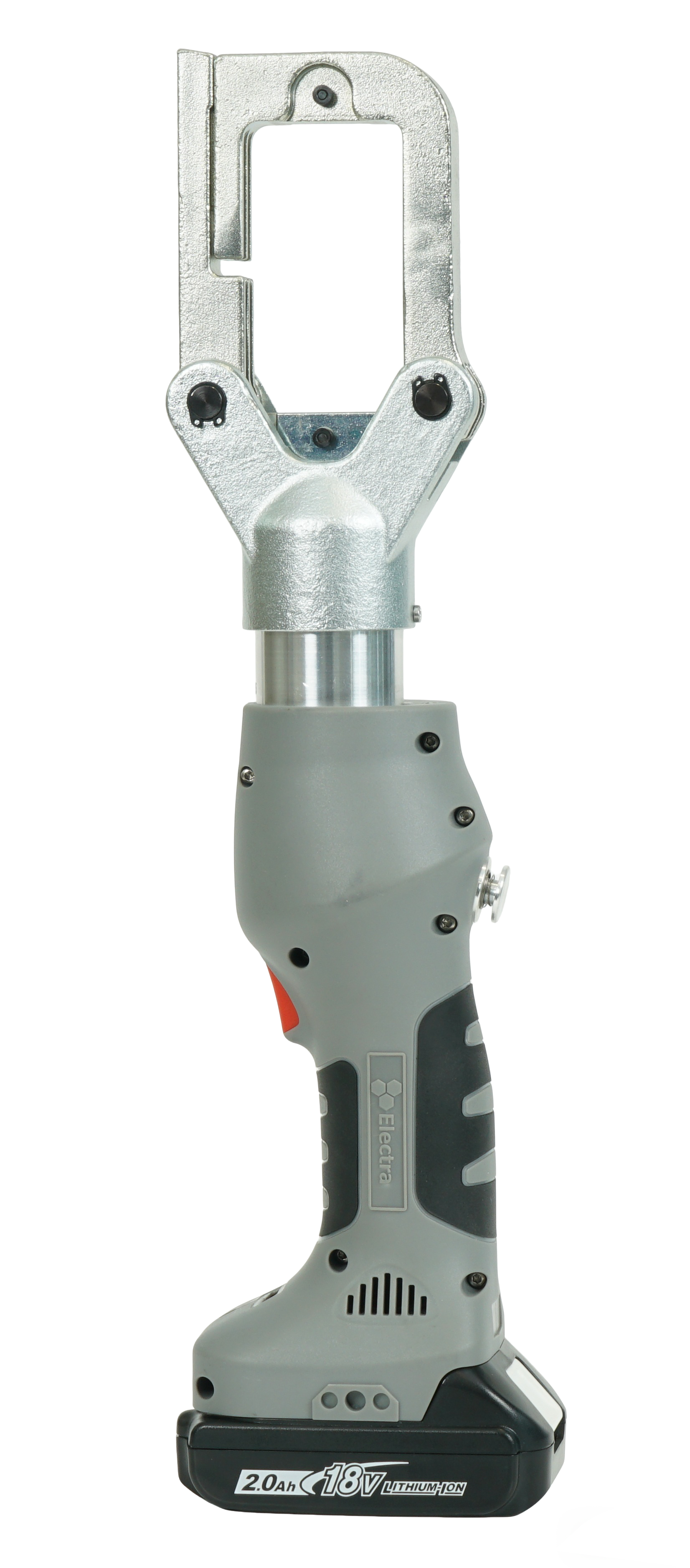

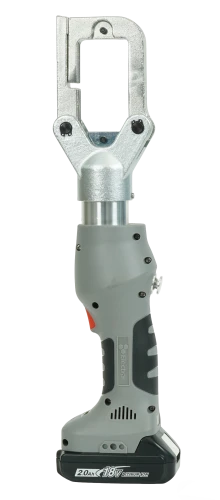

Universal cutting + pressing machine

Model E22 UNI NANO

Multifunctional tool

Die series 22 for pressing

Clip-on head

Weight 2.94 kg

Working pressure 700 bar

Pressure 60 kN

Working range

Pressing Al. 6-240 mm2

Pressing Cu 6-240 mm2

Cutting of AFL ( ACSR ) cables 25 mm

Al/Cu cable cutting 25 mm

Pressing/cutting up to 10 seconds

Working pressure 700 bar

Pressure 60 kN

360 degree rotating head

Biodegradable oil

Operating range at -20 to +40 degrees C

Height 415x95x85 mm

Power supply :

Makita Li-Ion 18.0V, 2.0Ah battery pack

Charger with active cooling system:

cools the battery thanks to the built-in fan

during charging

Battery type : Lithium Ion/LI-Ion

Battery capacities: 1.3-5.0 ( 2.0 Ah standard battery )

Charging time: about 22 min

Charger power supply 230 V

LED indication of battery charge

LED indication of battery charge status

LED panel with battery data and number of presses

Automatic pressure fuse

Manual / automatic piston return

Stop scissor operation / piston return - immediately

LED illumination of the work area - 2 diodes

Single-stage pump ( uniform clamping )

Composite handle

Handle for attaching to a belt or hanging up

The set includes :

Multifunctional device E22 UNI NANO

Adapter for pressing

Adapter for cutting AFL cables

Al/Cu cable cutting adapter

Makita charger

Rechargeable battery E18/2.0- capacity 2.0 Ah ,

Plastic carrying case

Instruction manual

Options :

Additional battery

Milwaukee battery adapter

Mains adapter

Matrices to choose from ( page 116 of Electra Polska catalog ) series 22 pressure 60 kN https://electrasklep.pl/pl/c/Matryce/67

• MR22 - Dies for Cu standard
• MD22 - Die for Cu DIN
• MA22 - Die for Al. DIN
• MC22 - Dies for thin-walled Al.
• MRU22 - Die for sector conductor reforming
• MK22 - Dies for crimping AL/AFL
• ME22 - Dies for pressing AsxSn connectors
