Hydraulic crimping head 6-630 mm²
| Working range Al. | Al.DIN max 500 mm², Cu DIN max 625 mm², AFL max 6-240 mm², Oil capacity required 88 cm³ |
|---|---|
| Pressure | 250 kN |
| Die series | 25 |
| Working pressure | 700 bar |
| Height | 320 mm |
| Weight | 5.5 kg |
- Hydraulic crimping head
- Working range (cables) max Cu 630 mm² Al 500 mm²
- Working range (conductors) max AFL 6-240 mm²
On warehouse: 3
Product code: G25
Availability: running out
Dispatched within: 24 hours
Hydraulic crimping head 120-1000 mm²
| Working range | Al.DIN max 800 mm², Cu DIN max 1000 mm², AFL max 8-525 mm², Oil capacity required 226 cm³ |
|---|---|
| Pressure | 450 kN |
| Die series | 26 |
| Working pressure | 700 bar |
| Height | 285 mm |
| Weight | 10.6 kg |
- Line work range AFL8-525
On warehouse: 3
Product code: G26
Availability: running out
Dispatched within: 24 hours

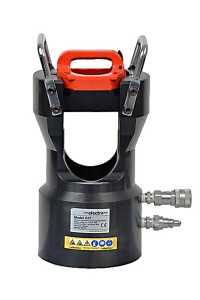

Hydraulic crimping head 980 kN
| Working range | Al max hex 71 mm, Cu max hex 64 mm, St max hex 34 mm, Required oil capacity 315 cm³ |
|---|---|
| Pressure | 980 kN ( 100 tons ) |
| Die series | 27 |
| Working pressure | 700 bar double hydraulic circuit |
| Height | 364 mm |
| Weight | 31.4 kg |
On warehouse: 2
Product code: G27
Availability: running out
Dispatched within: 24 hours
Hydraulic crimping toos 16-240 mm² with dies
| Pressure | 50 kN |
|---|---|
| Working range | 16-240 mm² |
| Weight | 2.4 kg |
Dies 10-185 mm² included
On warehouse: 2
Product code: H21
Availability: running out
Dispatched within: 24 hours

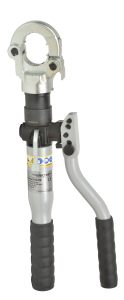

Hydraulic crimping tools 6-300 mm² without dies
| Working range Al | 10-300 mm2 Cu 6-300 mm2 |
|---|---|
| Pressure | 61 kN |
| Die series | 22 |
| Working pressure | 700 bar |
| Weight | 3.2 kg |
On warehouse: 0
Product code: H22
Availability: temporarily unavailable
Dispatched within: 24 hours

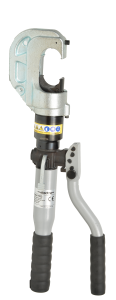

Hydaulic crimping tools 6-400 mm² without dies
| Working range Al. | 10-400 mm2 Cu 6-400 mm2 |
|---|---|
| Pressure | 130 kN |
| Die series | 23 |
| Working pressure | 700 bar |
| Weight | 6.1 kg |
On warehouse: 1
Product code: H23
Availability: running out
Dispatched within: 24 hours
Hydraulic crimping head 120-500 mm2
Press head Model C Working range 120-500 mm2 Piston stroke 50 mm Dimensions 400x130x70 mm Weight 6.8 kg
On warehouse: 0
Product code: G24
Availability: temporarily unavailable
Dispatched within: 24 hours
Hydraulic crimping head 6-300 mm²
| Working range Al. | Al 10-300 mm², Cu 6-300 mm² |
|---|---|
| Pressure | 63 kN |
| Die series | 22 |
| Working pressure | 700 bar |
| Height | 209 mm |
| Weight | 2.5 kg |
- Crimping head
On warehouse: 2
Product code: G22
Availability: running out
Dispatched within: 24 hours
Hydraulic crimping head 6-400 mm²
| Working range Al. | 10-400 mm2 Cu 6-400 mm2 |
|---|---|
| Pressure | 130 kN |
| Die series | 23 |
| Working pressure | 700 bar |
| Height | 260 mm |
| Weight | 5.5 kg |
On warehouse: 2
Product code: G23
Availability: running out
Dispatched within: 24 hours
Hydraulic pump 700 bar
| Working pressure | 700 bar |
|---|---|
| Operating range at | -20 to +40 degrees C |
| High pressure | 1.4 cm³, low 11.0 cm³ |
| Weight | 5 kg |
- Hydraulic pump, drive: hand lever, aluminium body, working pressure 700 bar, single hydraulic circuit, weight 5.0 kg
On warehouse: 1
Product code: HP1
Availability: running out
Dispatched within: 24 hours
Battery hydraulic pump 700 bar
| Working pressure | 700 bar |
|---|---|
| Voltage | 18.0V |
| Dimensions | 480 x 250 x 250 mm |
| Operating range at | -20 to +55 degrees C |
| Power | 200 W |
| Weight | 7.7 kg |
On warehouse: 5
Product code: HP8
Availability: running out
Dispatched within: 24 hours
Hydraulic pump 700 bar
| Working pressure | 700 bar |
|---|---|
| Operating range at | -20 to +55 degrees C |
| High pressure | 2.26 cm³ , low pressure 12.26 cm³ |
| Drive | foot-operated |
| Weight | 8.6 kg |
On warehouse: 1
Product code: HP3
Availability: running out
Dispatched within: 24 hours
Petrol Hydraulic pump
| Working pressure | 700 bar |
|---|---|
| Engine | petrol combustion engine |
| Dimensions | 640x380x480 mm |
| Oil tank capacity | 16 litres |
| Flow rate | 1.5-6 l/min |
| Weight | 53 kg |
- Petrol hydraulic pump Dual hydraulic circuit, supply-return Working pressure 700 bar Petrol combustion engine Flow rate 1.5-6 l/min Oil tank capacity 16 litres Weight 53 kg Dimensions 640x380x480 mm
On warehouse: 2
Product code: HP15
Availability: running out
Dispatched within: 14 days
Battery hydraulic pump 700 bar
| Operating pressure | 700 bar |
|---|---|
| Dimensions | 338x 172 x 266 mm |
| Operating range at | -20 to +55 degrees C |
| Power | 490 W |
| Remote control on | 1.5 m cable. - START-STOP |
| Weight | 5.9 kg |
On warehouse: 28
Product code: HP6
Availability: a large amount
Dispatched within: 24 hours
Hydraulic crimping head 1200 kN kN
| Working range | Al... max ¢ 75 mm, Cu max ¢ 72 mm, St max ¢ 40 mm |
|---|---|
| Pressure of | 1200 kN ( 120 tons ) |
| Die series | 120 |
| Working pressure | 700 bar double hydraulic circuit |
| Weight of the head | 52 kg , weight of the steel base 33 kg |
| Operating range at | -20 to +40 degrees C |
On warehouse: 1
Product code: P8120
Availability: running out
Dispatched within: 24 hours
